Desktop SMT Machine V6 Pro
A compact pick-and-place machine for small-batch PCB assembly, featuring dual placement heads, triple vision cameras, closed-loop motion control, automatic feeders and intelligent SMT software.
Complete Upgrade
Explore the limits of desktop pick-and-place machines with user-friendly and logically advanced software.
Fast Speed
Thanks to powerful S-curve motion control, it is 80% faster than similar machines, with a placement speed of up to 3,000 CPH and minimal vibrations.
High Precision
Supports a wide range of common packages, with the smallest being 0402. Closed-loop control motor stabilizes movement without losing steps.
Intelligent Software
Simplifies operations with user-friendly controls, ensuring precision placement every time.
Various Feeder
Supports visual scatter feeders and easily recognizes even polarized components. Vision Feeder, Auto Feeder and Strip Feeder are supported.
Auto Nozzle Changer
Up to 6-position nozzle library, facilitating the mounting of components of various sizes in one go.
Dual Bottom Cameras
Faster speed with up to three cameras on the machine, offering high cost-performance ratio for machines under 2000 dollar.
Auto Feeder
The self-developed feeder has undergone multiple iterations and is now in its fourth generation, supporting automatic barcode scanning for feeder addition, eliminating tedious repetitive tasks. It features all-metal gears, a compact design, and is elegantly small.
Reasons to Choose V6 Pro
Choose a desktop SMT machine with stronger software, vision, motion control, feeder structure and after-sales support.
Specs

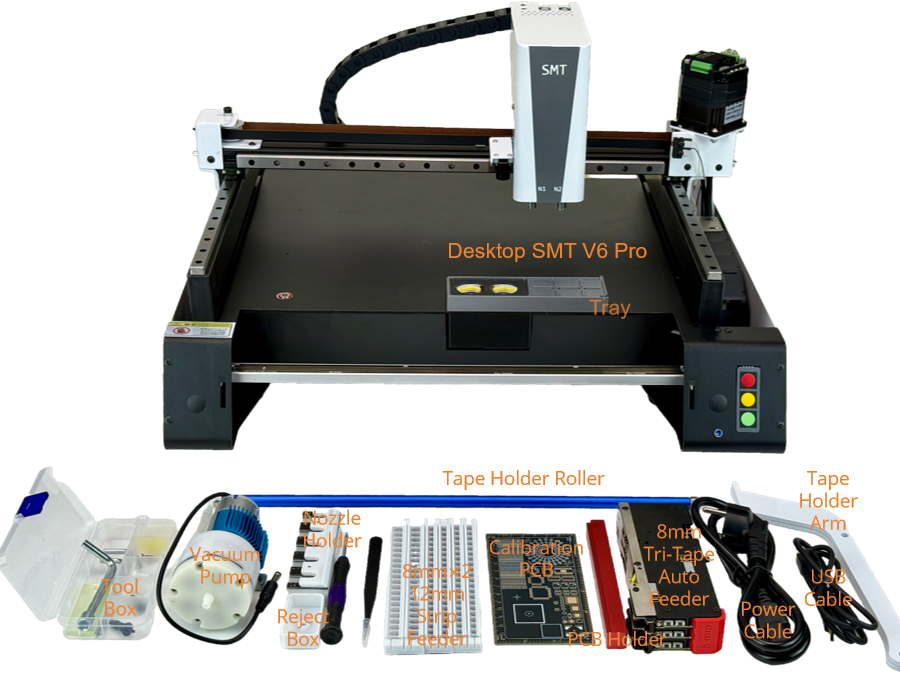

Default Delivery List
Optional List
Warranty
Standard Warranty
12-month warranty for quality problems caused by non-human factors.
Spare Parts Support
After the warranty period expires, parts will be replaced and repaired at cost price.
FAQ
What is the maximum feeder capacity?
Max Loading: 12 × [8mm-3-tape E-feeder]. Mixing: 1 × [12mm 2-tape E-feeder] = 1 × [8mm 3-tape E-feeder]; 2 × [16mm 2-tape E-feeder] = 3 × [8mm 3-tape E-feeder].
What is the maximum chip processing size?
Limited by the bottom camera field of view. Max Chip: 15 × 15mm, Pin≤100.
