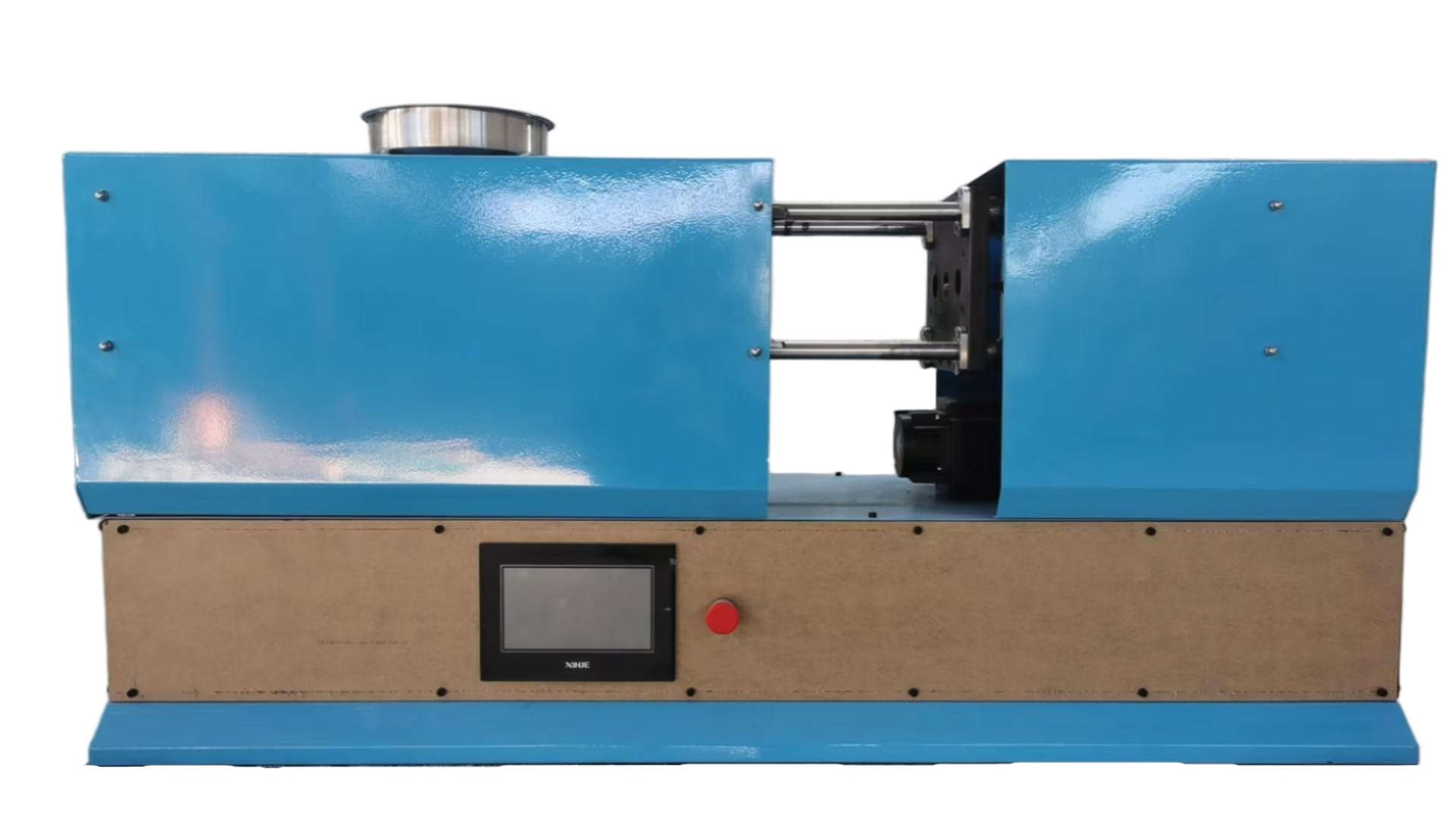

Electric X Desktop Injection Molding Machine
All-electric desktop injection molding machine for precise, compact and efficient plastic part production. Ideal for prototype injection molding, education labs, small batch plastic production and product development.
Download Brochure
Product Video
Features
Cost Efficient System
A compact all-electric desktop injection molding system for prototype parts, education labs and small batch plastic production.
High Precision Control
Three servo motors provide accurate injection, mold movement and stable cycle control with low energy consumption.
Crankshaft Clamping
Toggle crankshaft clamping improves mold opening and closing speed, cycle stability and repeatability.
Industrial Barrel
Tempered and nitrided alloy barrel supports engineering plastics, wear resistance and long service life.
Multi-Stage Heating
PID temperature control supports uniform plasticizing and stable molding with ±1°C precision.

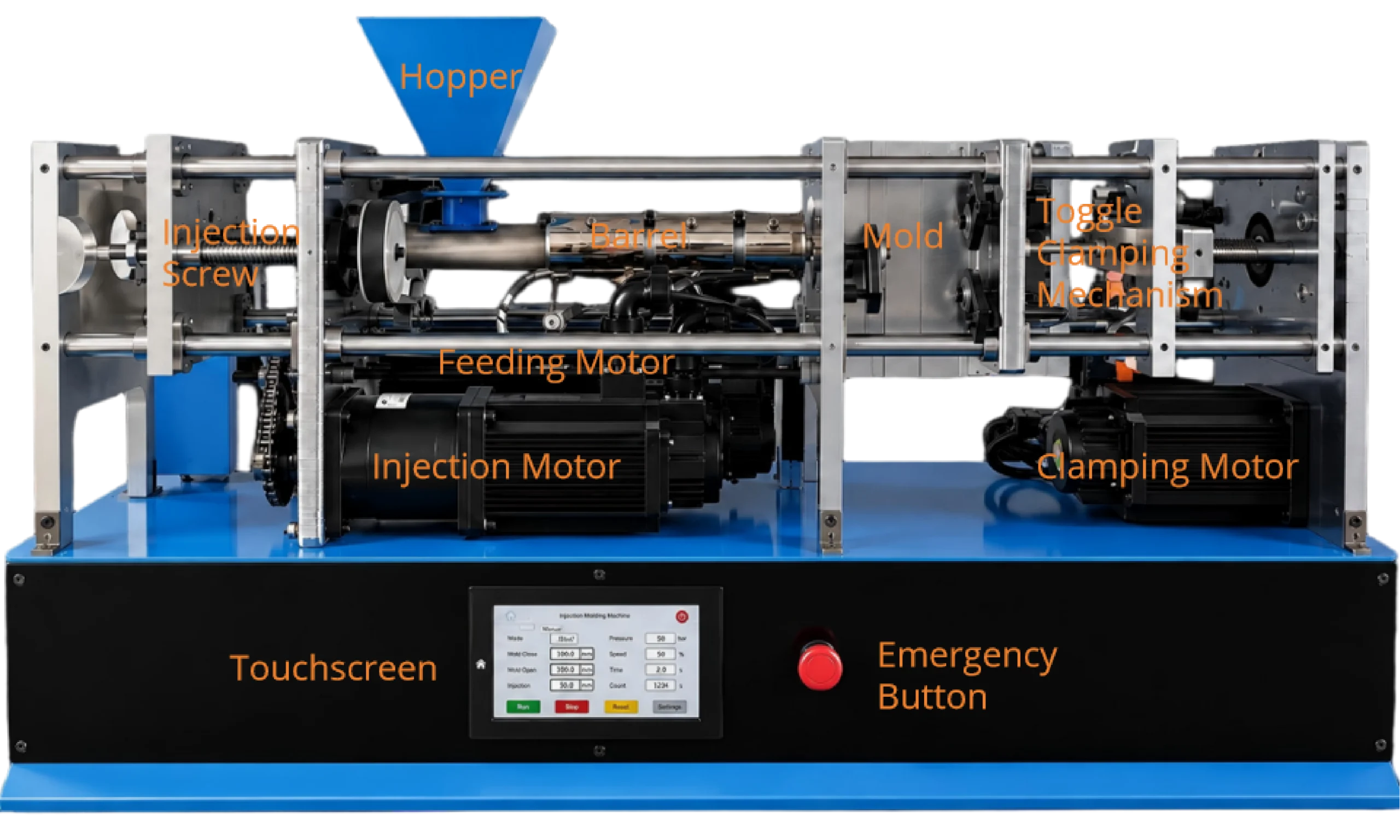

Machine Structure
Injection Unit
Servo-driven ball screw injection system delivers stable plasticizing performance and precise shot control.
Molding Unit
Rigid mold mounting area supports compact mold tooling, mold inserts and small multi-cavity production.

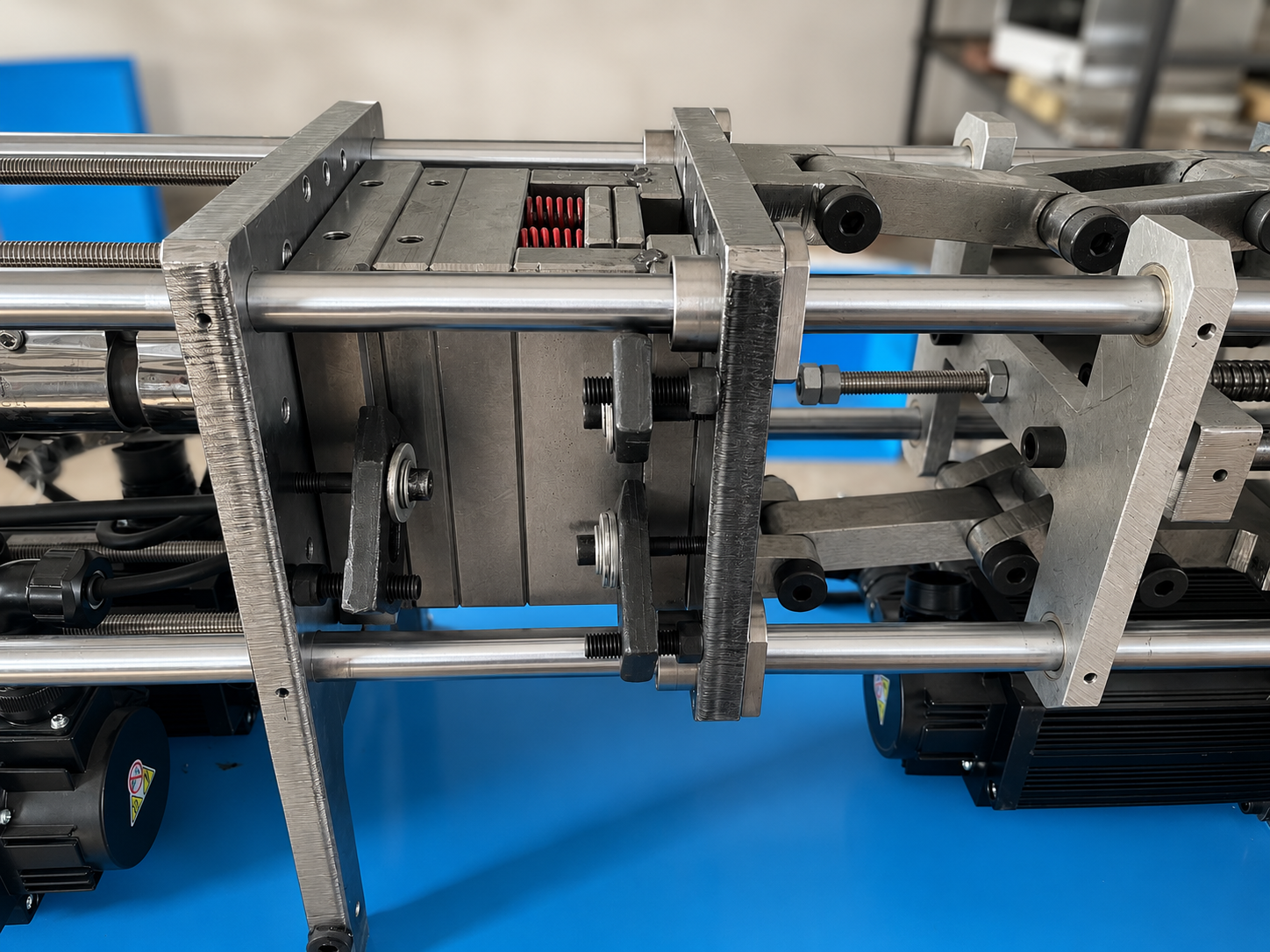

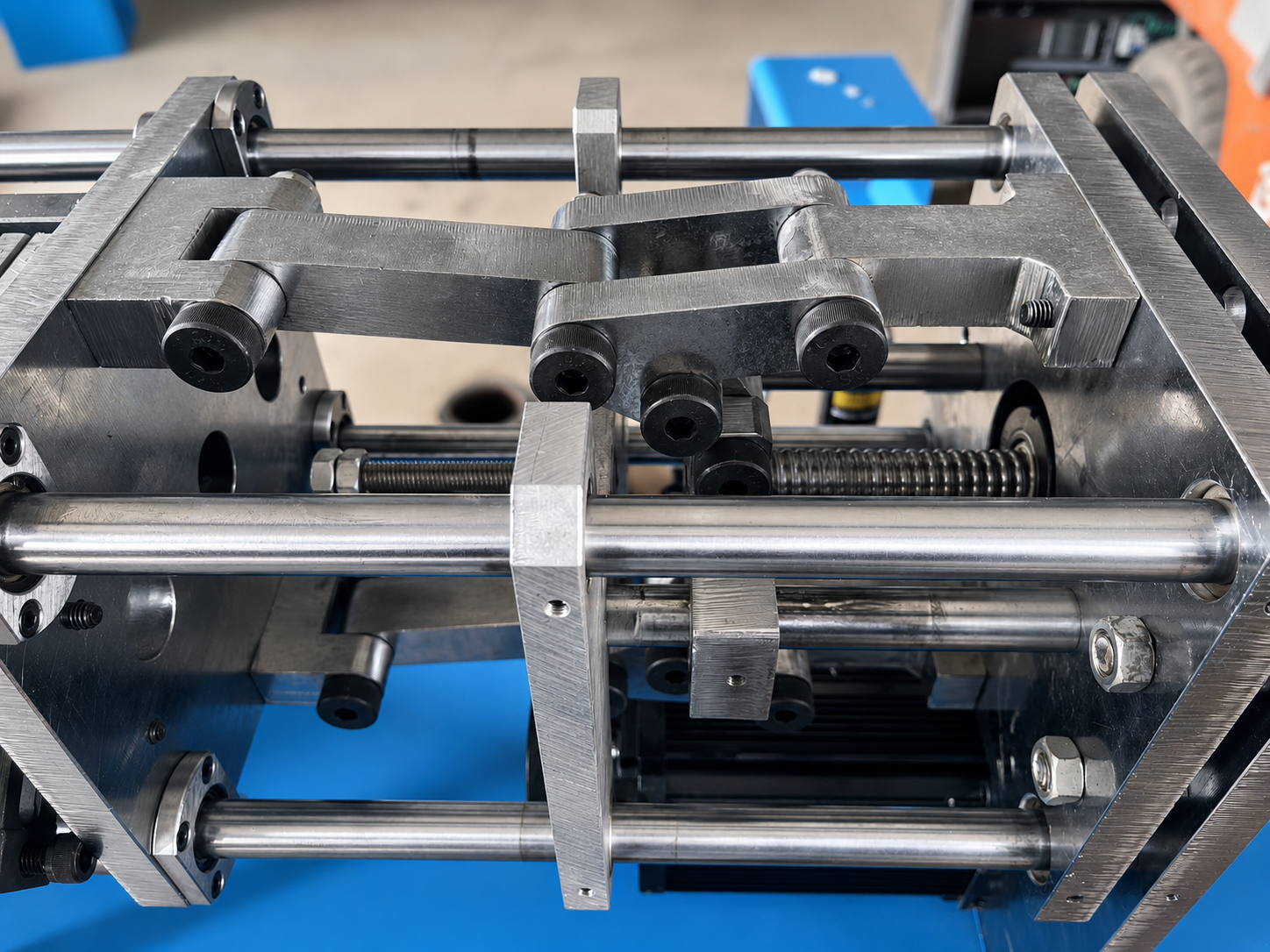

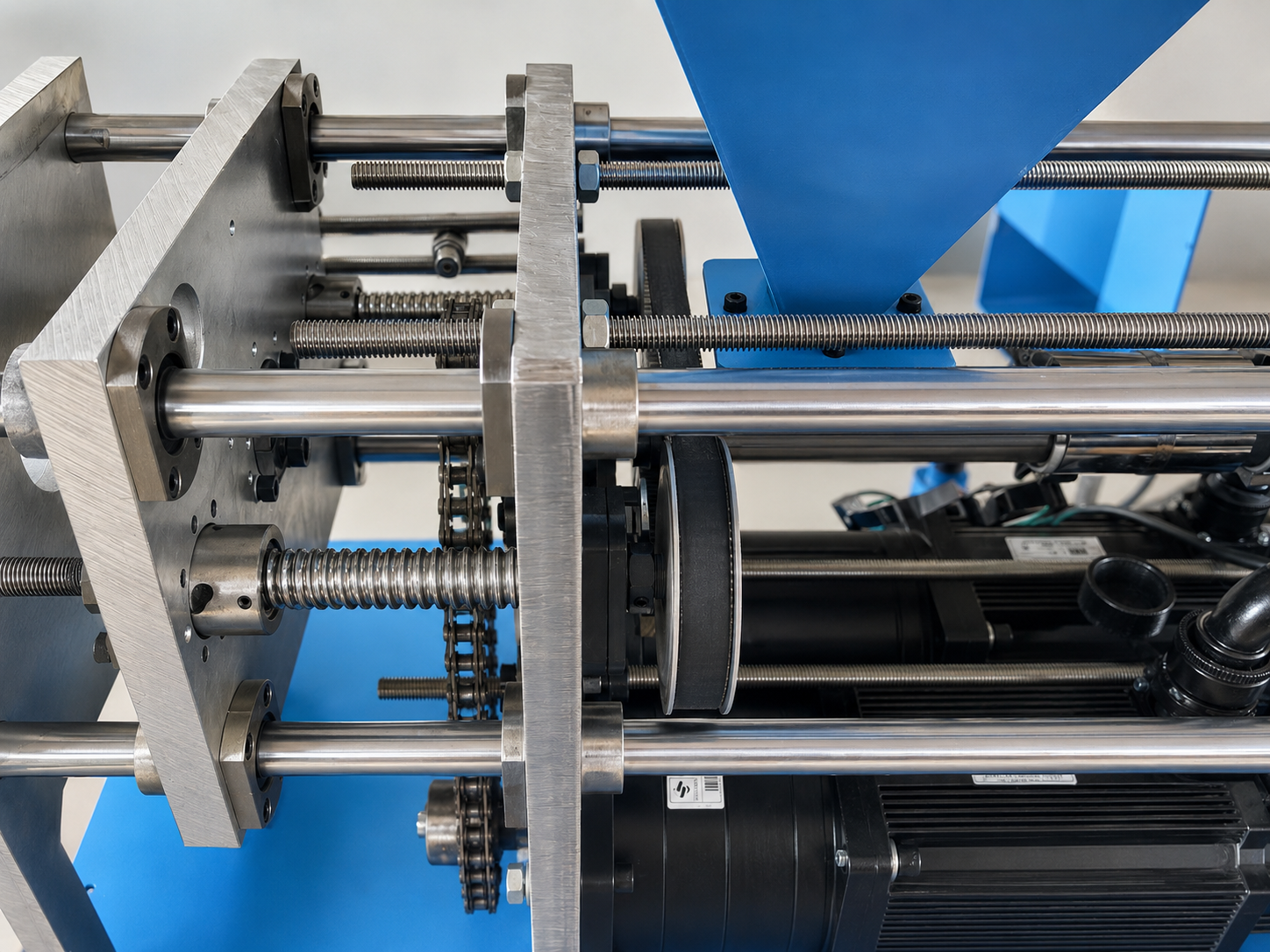

Clamping Unit
Toggle clamping mechanism supports stable mold locking during injection molding and fast mold opening and closing.
Desktop vs Industrial Injection Molding
Visual comparison of production systems and capability differences.
- Low setup cost
- Accessible for startups
- High capital investment
- Factory-level deployment
- Compact desktop footprint
- Workbench installation
- Large industrial footprint
- Dedicated factory space required
- 220V standard power
- Plug-and-play operation
- 3-phase industrial power required
- Complex installation
- Fast prototyping
- Small batch production
- Mass production optimized
- Long production cycles
- Quick mold change
- High flexibility
- Slow tooling change
- Low flexibility
Technical Specifications
Machine Data
Machine Size: 145 × 40 × 60 cm
Machine Weight: 210 kg
Power Supply: 220V / 5.4 kW
Servo Power: 3 × 1.8 kW
Injection System
Screw Diameter: Φ22 mm
Maximum Temperature: 350°C
Shot Weight: 25 g
Clamping Force: 4 Tons
Injection Pressure: 100 MPa
Mold System
Maximum Mold Size: 200 × 160 mm
Mold Thickness: 200 mm
Ejector Stroke: 15 mm
Platen Stroke: 120 mm

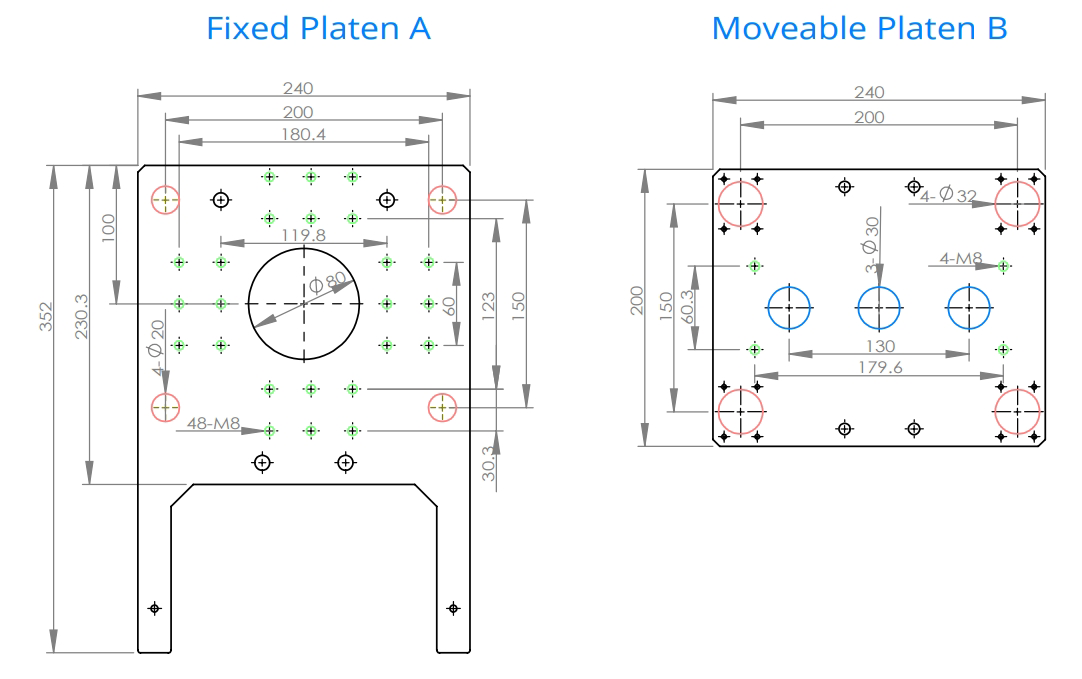

Mold Platen
Download the mold platen STEP file to design compatible molds, verify mounting dimensions and prepare custom mold tooling for the Electric X desktop injection molding machine.
Download STEP

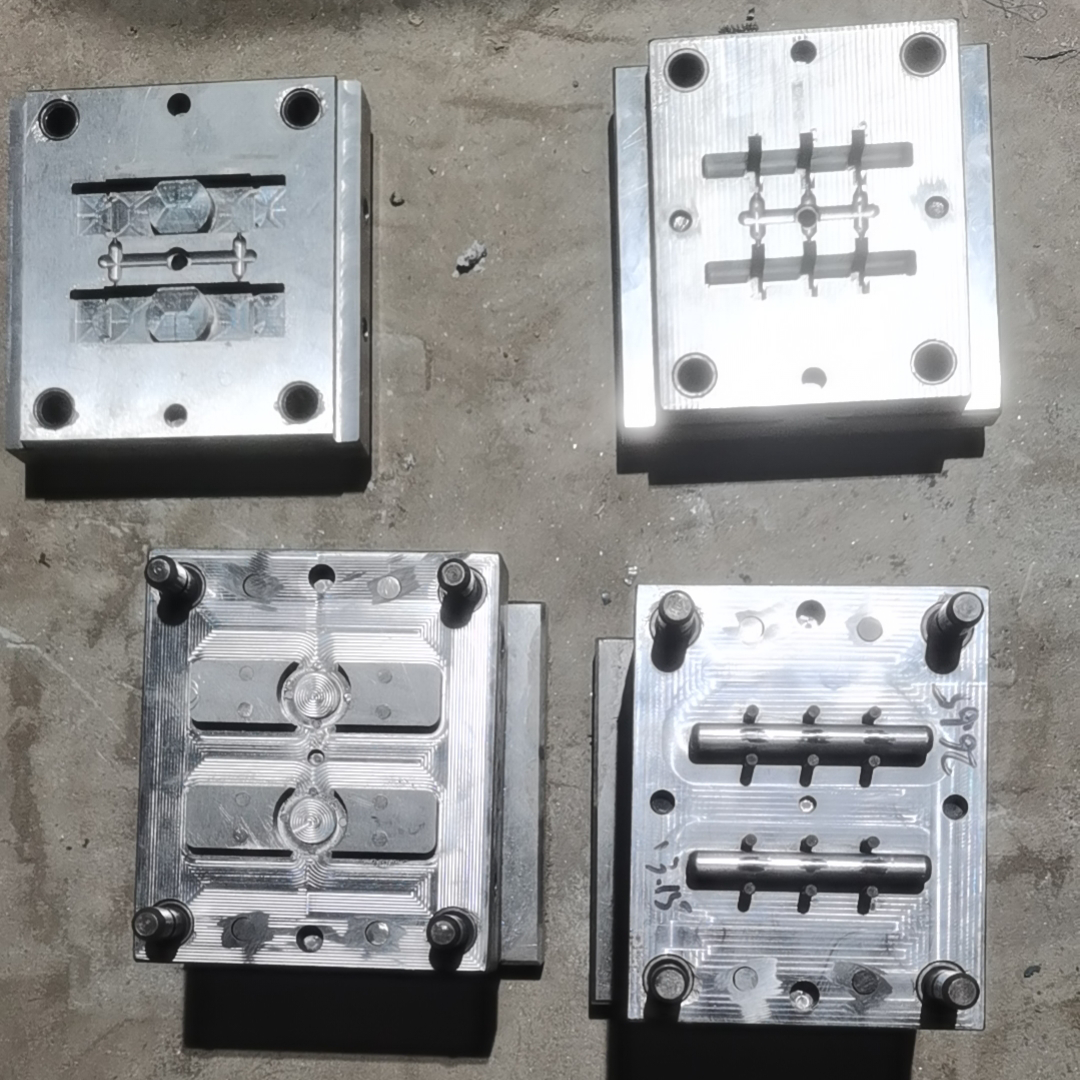

Mold Design & Manufacturing
Custom Mold Design
Design desktop injection molding molds based on product requirements, STEP files and part geometry for optimized molding efficiency.

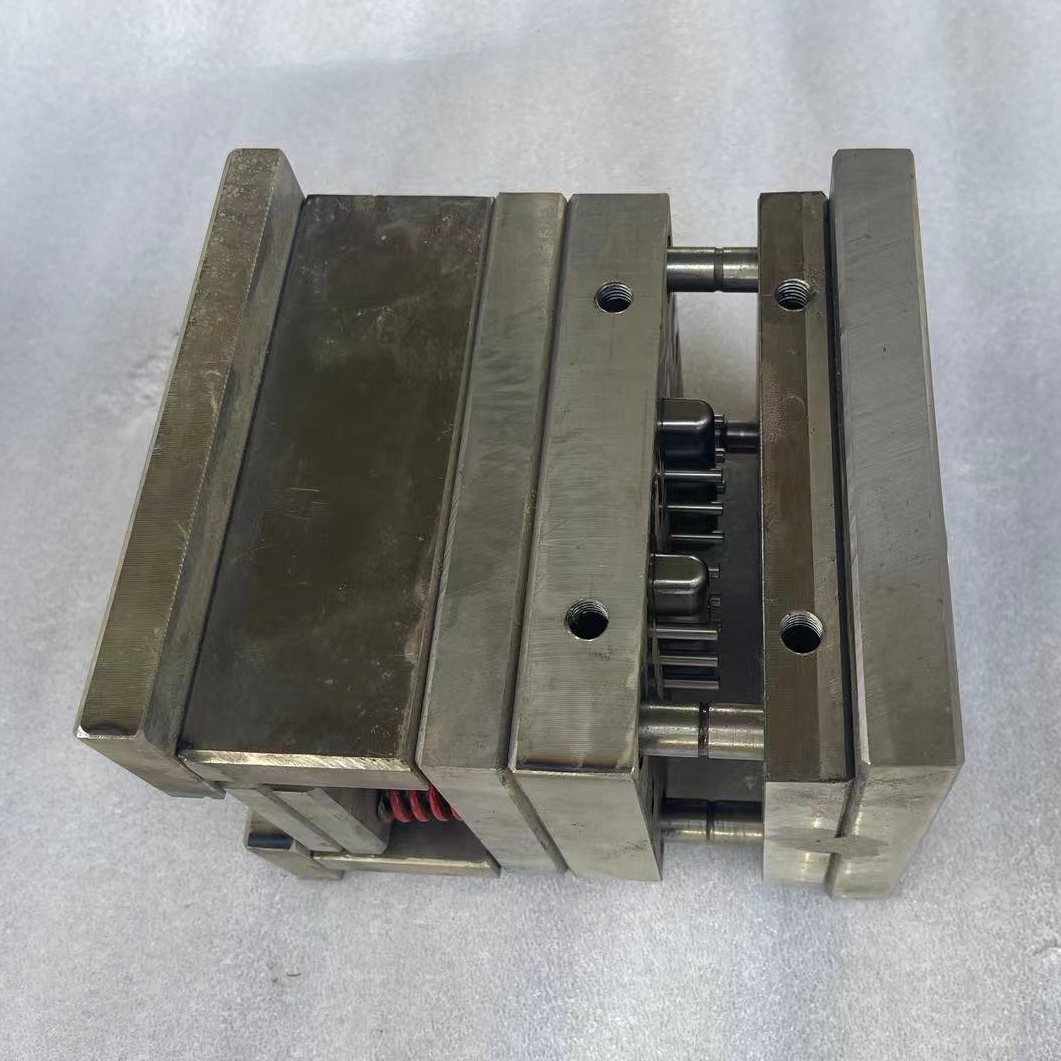

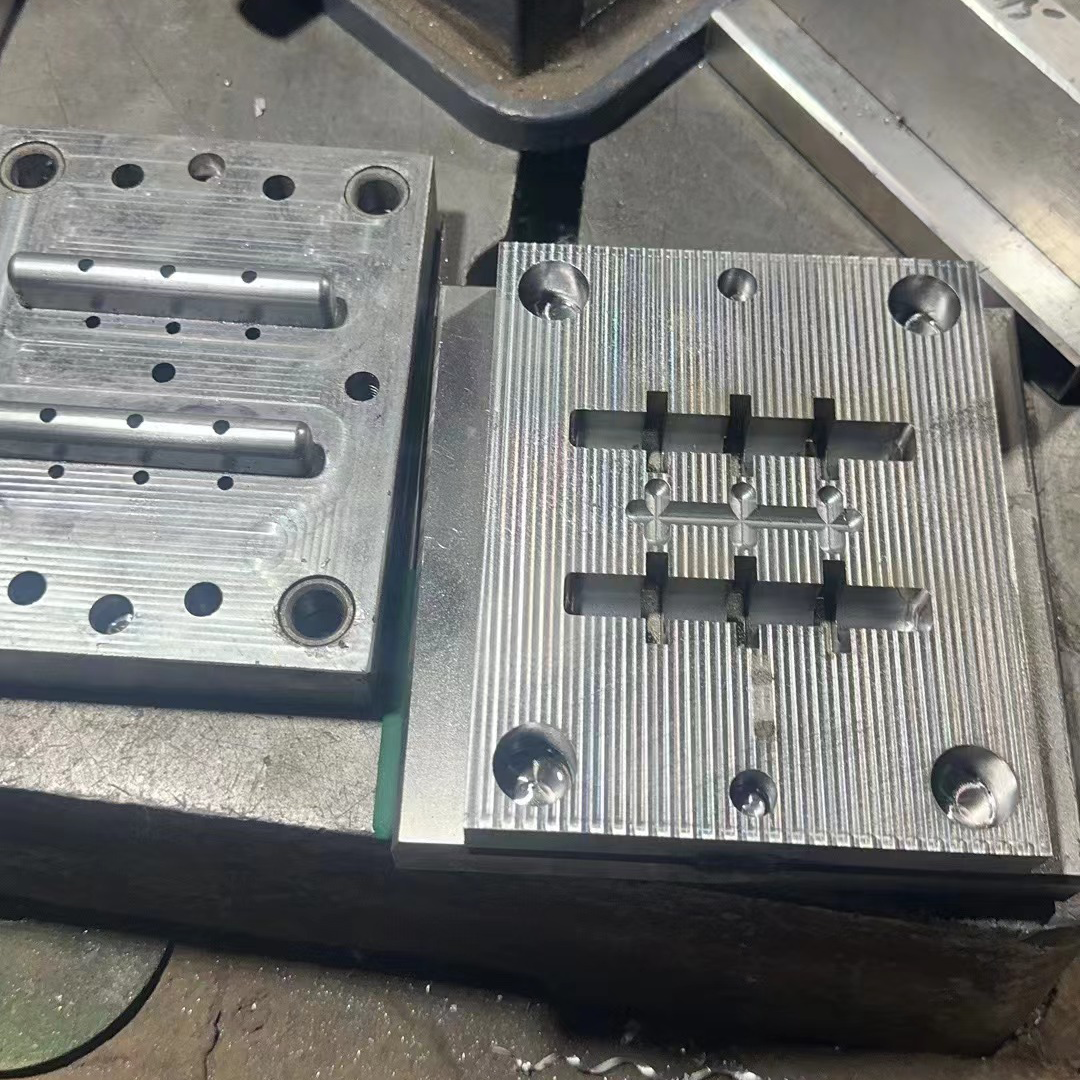

Unitary Mold
Integrated mold structure with simple machining, low cost and high precision for small batch injection molding.

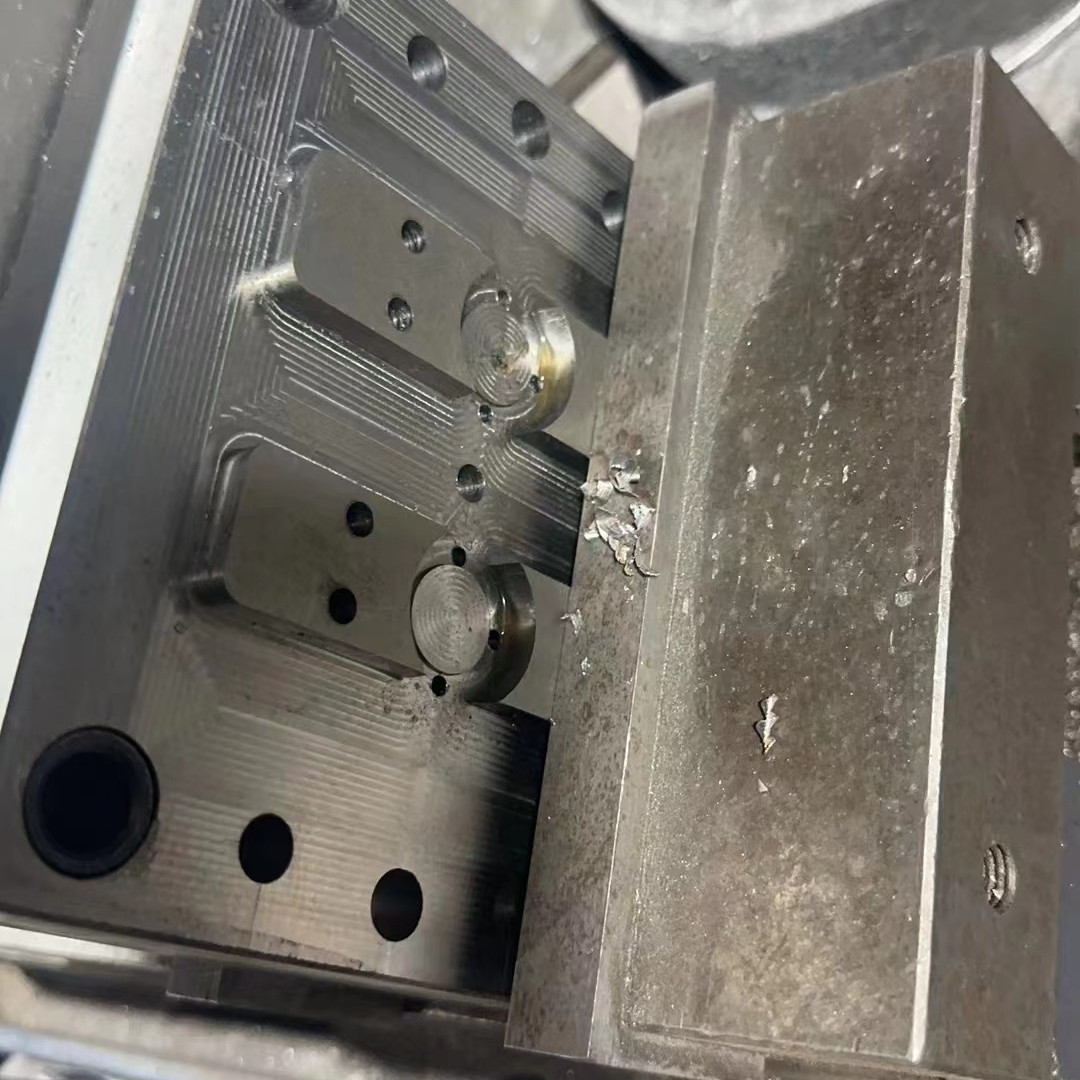

Split Mold
Modular insert mold design provides higher flexibility for complex geometries, product iteration and mold maintenance.

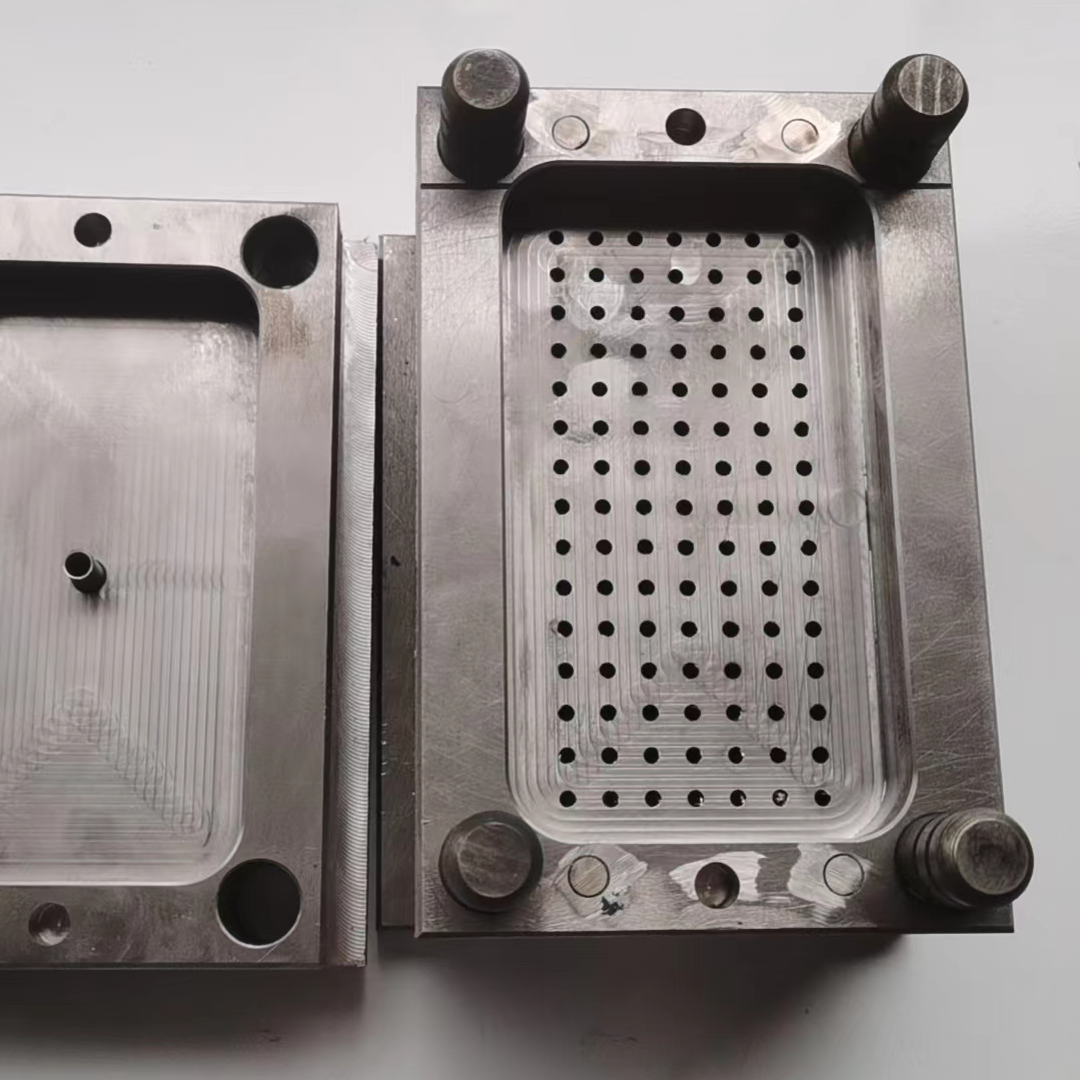

Mold Base
Reusable mold base compatible with 6061 aluminum inserts and 3D printed mold systems for fast tooling development.

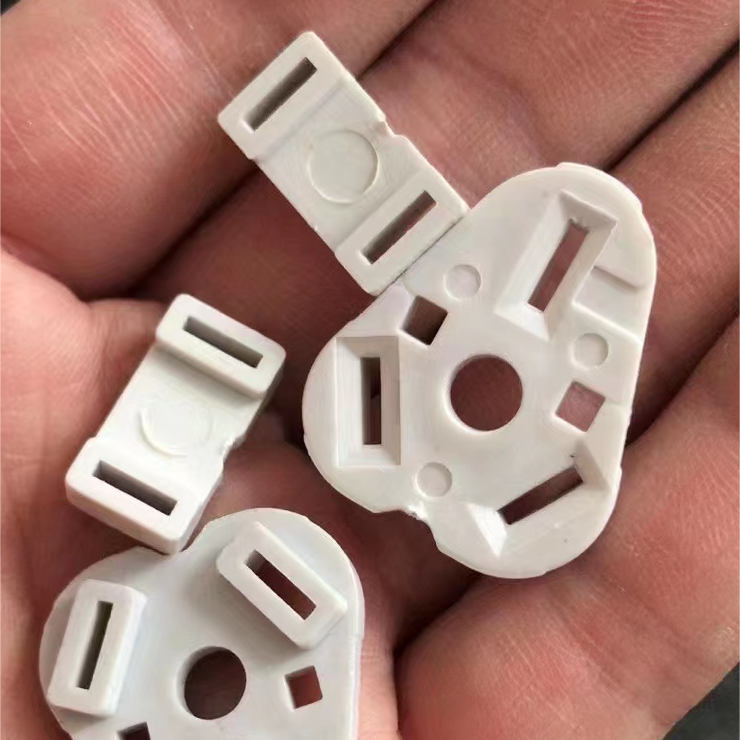

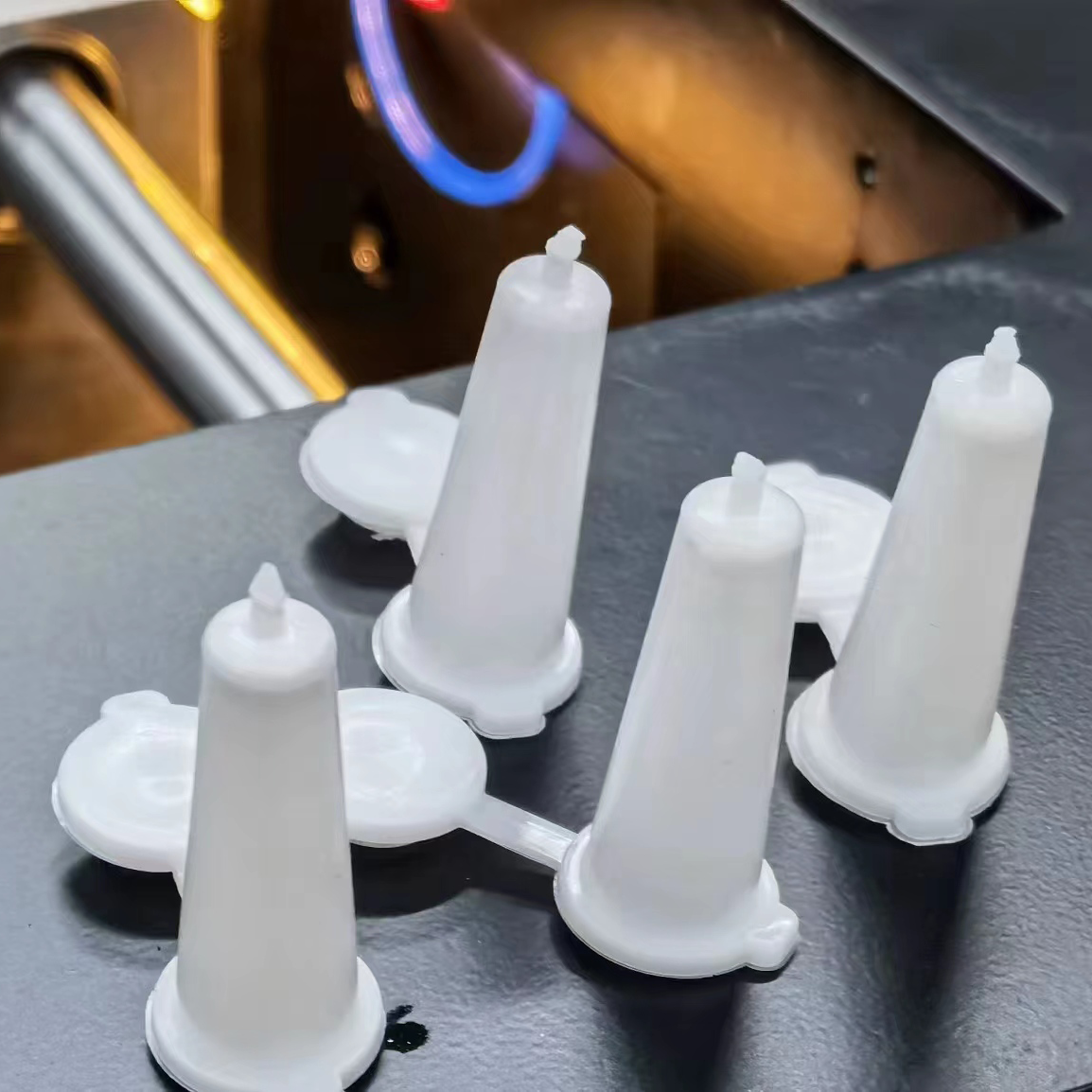

Material & Sample Showcase
PP and ABS molded part display for desktop injection molding material testing and prototype validation.
Warranty
1-year warranty covering non-human damage issues.
After warranty period, spare parts available at cost price with technical support.
FAQ
Delivery Time
Standard production cycle: 20 days for machine and mold.
Shipping Options
Air: ~7 days | Sea: 30–45 days | Auto: 25–45 days (select regions)
Supported Materials
PP, PE, POM, PA, PLA, TPE and most engineering plastics.
Start Your Production Today
Get technical support, mold design guidance and fast delivery options for desktop injection molding production.
Contact Engineering Team
