Benchtop RTCP CNC Milling Machine

Desktop NC Mate

Desktop NC Mate is a leading miniature five-axis CNC machine tool with RTCP. It delivers five-axis linkage machining, compact size, and easy operation for industrial-grade manufacturing on your desktop.

Get Quote Get Intro
Desktop NC Mate 5-axis CNC milling machine

Technological Revolution, Breaking Through Performance Limits

Comprehensive upgrade. Transmission structure upgraded to C5 ground ball screws, embedded touch screen operation, and integrated sheet metal casing. The CNC system is upgraded to a Linux NC offline system with strong anti-interference capability and high stability.

Linux NC System
Touchscreen PC Operation
Precision Transmission Components
Integrated Enclosure
Desktop NC Mate front view
Desktop NC Mate machining area

Precision Manufacturing, Infinite Creativity

Powerful Spindle

High rotation speed of 24,000 rpm, water-cooled for temperature reduction, with radial runout of 3–5 micrometers.

Precision Components

Servo DC motors. The rotary axis adopts a harmonic motor; the linear axis uses a DC servo motor, ball screw, and linear guide.

Intelligent Control, Efficient Production

Easy to Operate

Automatic tool alignment, electronic handwheel control, and touchscreen operation.

Industrial-Grade Quality

Supports wireless probes, provides a cooling liquid circulation system, and features power-off resume carving.

Desktop NC Mate rear structure

New Linux NC

Linux NC touchscreen interface
01

Offline ARM Linux CNC

A low-cost, high-performance CNC system for offline control with higher anti-interference ability, stability, and richer expansion functions than USB control.

02

Power Interruption Resume Carving

The system records the breakpoint line number and allows one-click return to the machining position to resume processing.

03

High-Speed Interpolation Algorithms

PS-curve acceleration, angle smoothing, velocity anticipation, and small segment optimization enhance machining efficiency.

04

EtherCAT Communication

Flexible topology, fast data transfer, excellent synchronization, and wide use in industrial control.

05

PLC & Macro Programming

PLC manages machine control while macro programming allows custom procedures for processing needs.

06

MDI Mode

Operators can input G-codes, M-codes, and instructions directly from the control panel.

07

Handwheel Guided Processing

Useful for high-precision, flexible, and manual machining operations.

Specs

Packing Dimension
W770×D520×H850mm
Packaging Weight
125kg
Equipment Dimension
W700×D500×H650mm
Equipment Weight
115kg
Workbench Dimension
Φ100mm
Workbench Max. Load
5kg
XYZ Effective Travel
X160×Y200×Z130mm
A&C Effective Travel
A: -30–120°, C: 360°
3-Axis Machining Range
X160×Y200×Z125mm
5-Axis Machining Range
Cylinder Φ150×H105mm / Cube W125×D125×H110mm
5-Axis Accuracy
Linear axis parallelism & perpendicularity 0.02mm
Spatial Accuracy
<0.05mm
Ball Screw
X&Z: PMI 1204 C6, Y: PMI 1604 C6
A&C Axis
1:80 harmonic reducer, return <1′
Linear Guideway
X&Z: Hiwin MGN12, Y: Hiwin MGN15
Frame
45# quenched steel / Al6061-T6 aviation aluminum
Machining Speed
4000mm/min, vary by material
Principal Axis
800W water-cooled spindle
Spindle Protect
Accordion dustproof, oil seal waterproof & dustproof
Tool Diameter & Length
ER11 0–8mm, ≤75mm
Drive Motor
36V DC Servo, 1500rpm/min
Spindle Motor
800W, 24,000 rpm, upgradeable to 40,000 rpm
Control Software
e2 Studio
Program Software
PowerMill, Fusion360, NX/UG, MasterCAM

Shipping List

No.
Type
Name
Description
PCS
1
Equipment
Host
Bare machine, excluding sheet metal
1
2
Material Fixture
A-Type Self-Centering Vise
Clamps for 8–55mm square materials
1
3
Tool Holder
ER11 Collet
ER11-4 & ER11-6
2
4
Tools
End Mills, Ball Mills
0.2mm end mills ×10, 2/4/6mm end mills ×2, R-ball mills ×2
18
5
Electrical
Power Box
Motor control inverter
1
6
Electrical
Power Cable
Equipment’s total power supply
1
7
Electrical
USB Data Cable
Connects the computer to the host
1
8
Electrical
Electronic Handwheel
Axis movement control
1
9
Tools
Hex Key Set
1.5–10mm, 9PCS
1
10
Tools
Spindle Wrench Set
14 & 17mm open-end wrenches
2
11
Material
Substitute Wood Blocks
For practice
4

Structure

Desktop NC Mate structure diagram

Warranty

The warranty period is one year, and replacement parts are available at cost after the warranty expires.
If natural damage occurs during the warranty period, we will provide parts and remote guidance free of charge.
Warranty does not cover incorrect operation, unauthorized product disassembly, or deliberate human damage.

Show

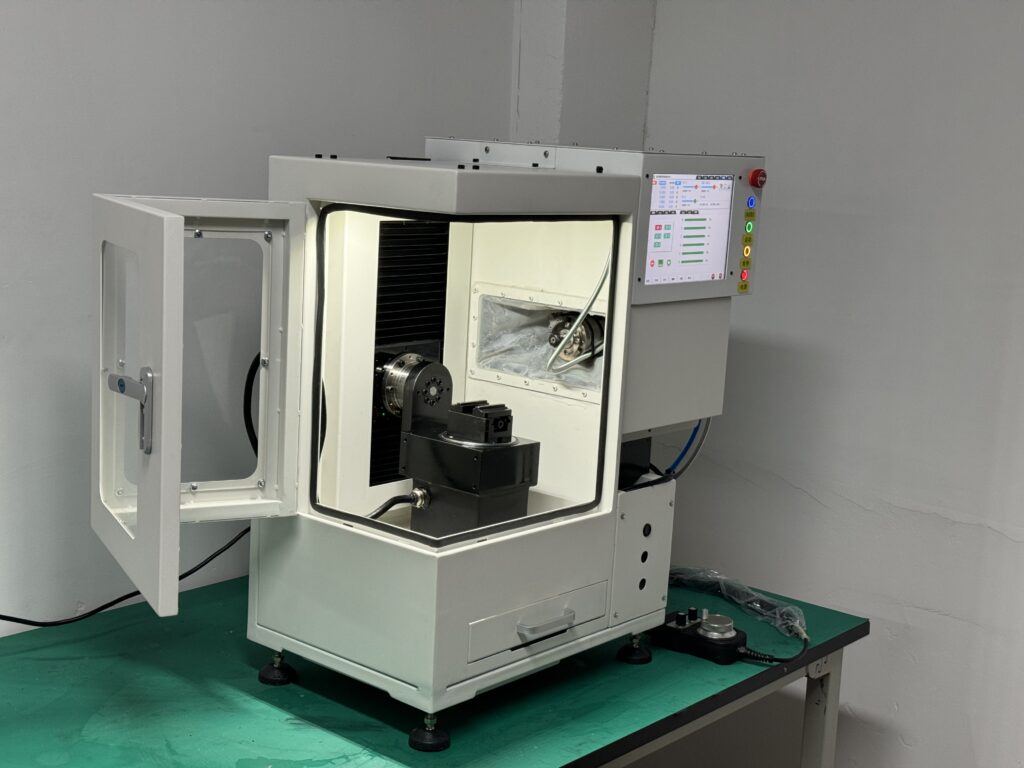

Desktop NC Mate show image Desktop NC Mate right view CNC machined aluminum artifact Desktop NC machined artifact

Versatile Fixture Mounting

Desktop NC rotary table mounting holes
