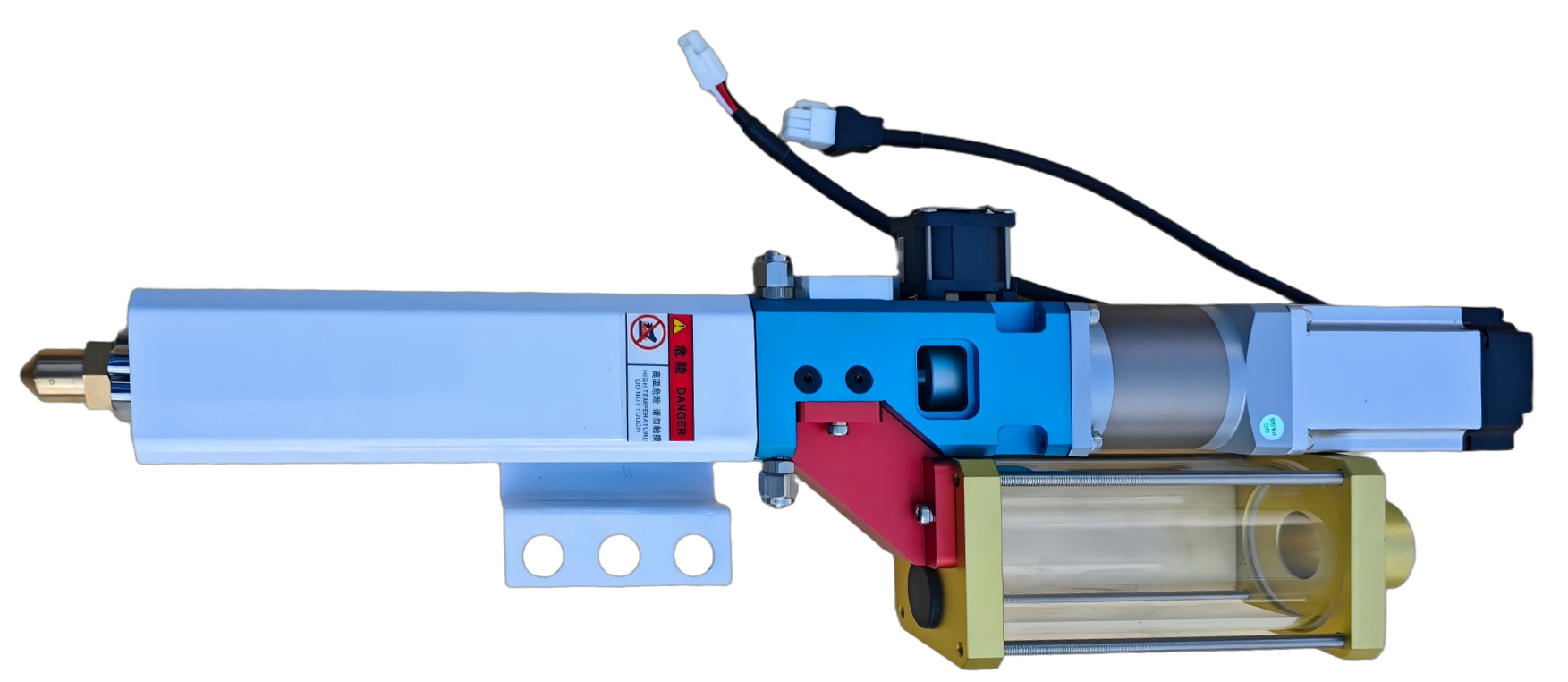

3D Pellet Extruder Pro
FGF (Fused Granular Fabrication) industrial pellet extrusion system for high-speed, low-cost large-format additive manufacturing using raw plastic pellets.
Download Brochure
What is FGF?
FGF (Fused Granular Fabrication) uses pellet feedstock instead of filament. This reduces material cost, increases extrusion throughput, and enables large-scale industrial production.
Applications
Show
Specs
| Package Dimension | 78×46×55 cm | Total Weight | 18 kg |
| Print Head Weight | 6 kg | Controller Weight | 5 kg |
| Motor Power | 400 W | Heating Power | 1 kW |
| Heating Zones | 2 | Max Temperature | 350±2℃ |
| Screw Ratio | 1:18 | Screw Diameter | Φ16 mm |
| Nozzle | 1.75 mm | Output Rate | 4 kg/hr |
Default & Optional Package

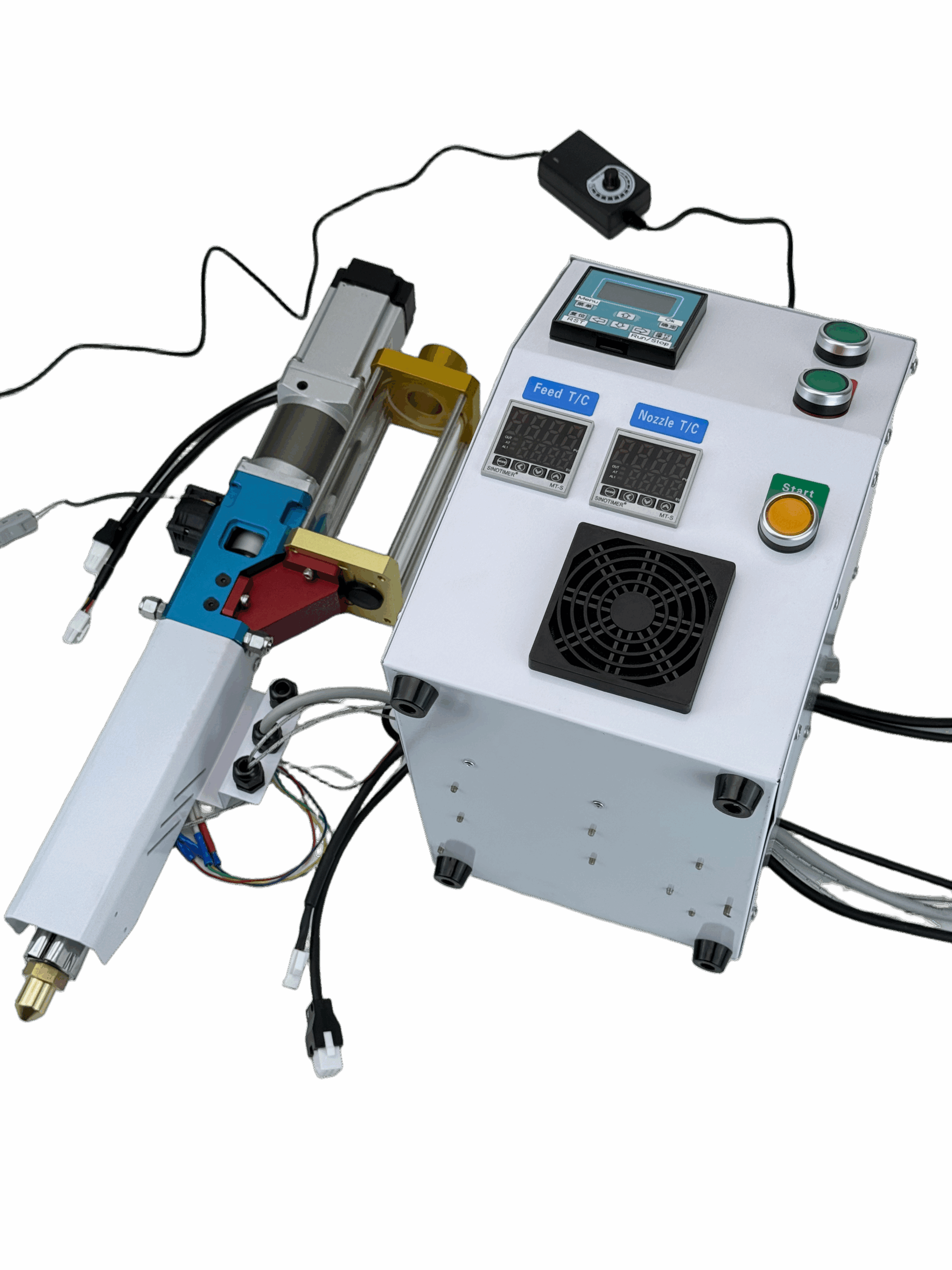

Standard Package
| Item | Qty | Description |
|---|---|---|
| Pellet Extruder Head | 1 | Main FGF extrusion system |
| Servo Controller | 1 | Temperature + motion control |
Optional Upgrades
| Item | Description | Price |
|---|---|---|
| 5m Cable Set | Power + encoder cable | $36 |
| 3mm Nozzle | Precision spare nozzle | $28 |
| Insulation Kit | High-temp 400℃ support | $29 |
FAQ
What materials can it print?
PLA, PETG, HIPS, modified ABS, and many pelletized thermoplastics depending on flow characteristics.
Can it work with robotic arms or gantry printers?
Yes. It is suitable for robotic arm integration, custom large-format systems, and industrial motion platforms.
Why choose pellets over filament?
Pellets usually offer lower material cost, faster output, and broader raw material options including recycled compounds.
Do you provide technical support?
Yes. We provide setup guidance, integration assistance, and quotation support.
Ready for Industrial FGF Printing?
Contact us for quotation, integration advice, and lead time.
