Desktop NC Turbo

A compact 5-axis desktop CNC machine with RTCP, harmonic reducer transmission, water-cooled spindle and DC servo motors for precision machining in small workshops, labs, education and custom manufacturing.

5-Axis RTCP 800W Water-Cooled Spindle 24,000 rpm / Optional 40,000 rpm DC Servo Motor

Get Quote View Specifications

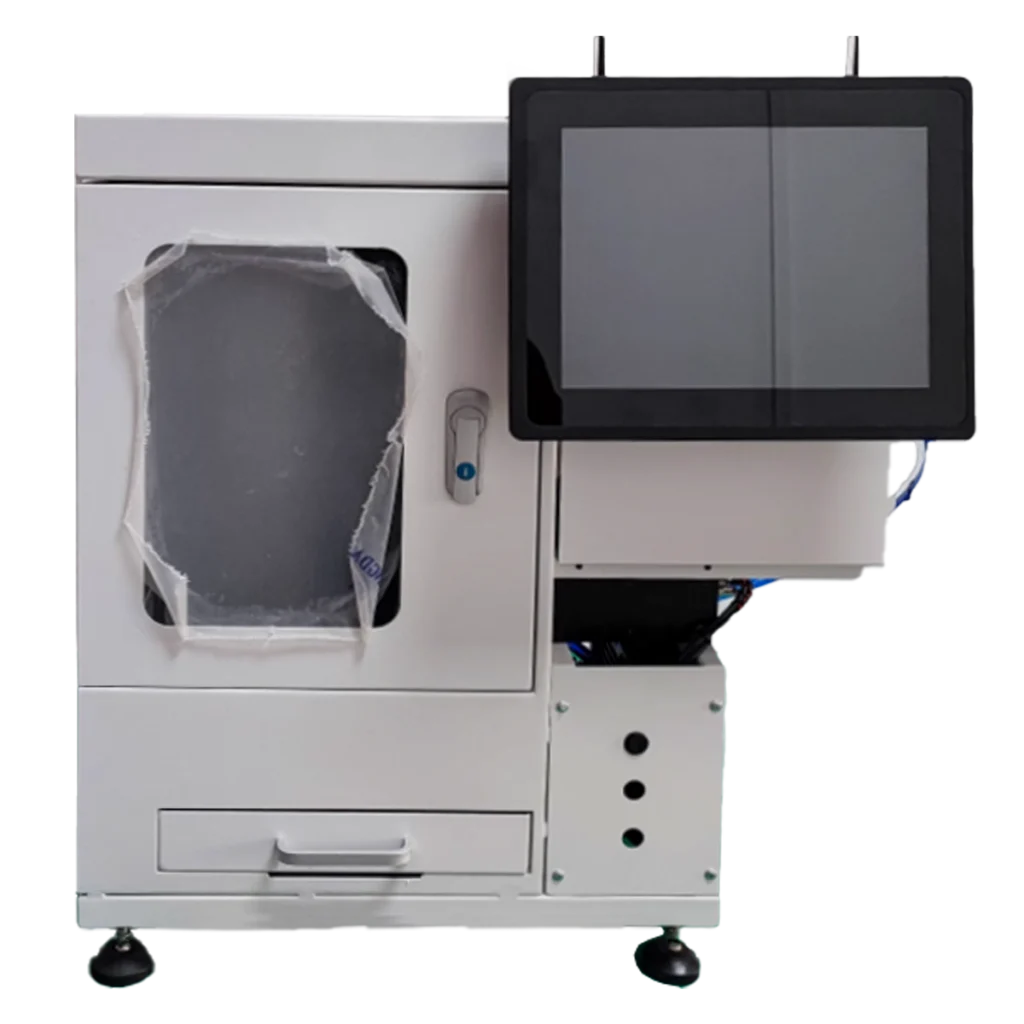

Desktop NC Turbo 5-axis desktop CNC machine

Overview

Desktop NC Turbo is designed for aluminum alloy, copper alloy, plastics, wood, wax, jade, glass and other materials. Its compact enclosed structure makes it suitable for prototyping, small-batch production, education and laboratory use.

Harmonic Reducer

Compact transmission with high rigidity, low noise and improved positioning precision.

Unique gear design

1μm track fine grinding

CMP heat treatment

Water-Cooled Spindle

800W high-power spindle with efficient cooling, ER11A collet nut and low radial runout.

24,000 rpm standard

Optional 40,000 rpm

3–5μm spindle runout

DC Servo Motor

Encoder feedback provides higher control accuracy, faster response and stable motion under load.

36V 1500 rpm

15-bit absolute encoder

Low noise and low vibration

Technical Specifications

Item

Value

Item

Value

Equipment Dimension

W600 × D400 × H510 mm

Equipment Weight

75 kg

Packaging Dimension

W800 × D600 × H800 mm

Packaging Weight

120 kg

Workbench Dimension

Φ100 mm

Workbench Max Load

5 kg

XYZ Effective Travel

X160 × Y200 × Z130 mm

A & C Travel

A: -30°–120°, C: 360°

3-Axis Range

X160 × Y200 × Z125 mm

4-Axis Range

Cylinder Φ150 × H105 mm / Φ100 × H120 mm

3-Axis Accuracy

Parallelism & perpendicularity 0.03 mm; spatial accuracy <0.02 mm

4-Axis Accuracy

Parallelism & perpendicularity 0.05 mm; spatial accuracy <0.05 mm

XYZ Ball Screw

X/Z: 1204 C7; Y: 1604 C7; optional C5

A & C Axis

1:80 harmonic reducer, return <1′

Linear Guideway

X/Z: Hiwin MGN12; Y: Hiwin MGN15

Frame

45# quenched steel and Al6061-T6 aviation aluminum

Machining Speed

4000 mm/min, varies by material

Protection

Accordion dustproof, oil seal waterproof and dustproof

Spindle

Φ65 mm water-cooled spindle

Tool Diameter

ER11, 0–8 mm, length ≤75 mm

Drive Motor

36V DC servo, 1500 rpm/min

Spindle Motor

800W, 24,000 rpm, optional 40,000 rpm

Power

220V input, 36V 15A output

Control System

Windows

Tool Setter

1.5N contact force, repeated accuracy 2μm

Software

DNC Studio, PowerMill, SprutCAM, Fusion 360, NX/UG, Mastercam

Machine Structure

Five-axis motion structure with X, Y, Z linear axes and A/C rotary axes. The compact mechanical layout supports small precision parts and complex surface machining.

Desktop NC Turbo 5-axis structure and coordinate system

Videos

Compare the machine performance and learn the basic operating workflow.

Machine Comparison Video

See how Desktop NC Turbo performs in compact 5-axis machining applications.

Tutorial Video

Learn the basic machine setup, operation and machining workflow.

Standard Delivery List

No.

Type

Name

Description

PCS

Equipment

Desktop NC Turbo

Machine with enclosure and industrial touch screen computer

Metal Clamps

A-type self-centering vise

Clamping range for square material: 8–55 mm

Tool Holders

ER11 collets

ER11-4 and ER11-6

Tool

End mills, flat mills, ball mills

0.2 mm flat mill ×10; 2/4/6 mm end mills ×2; R1 ball end mill ×2

Electrical

Power supply box

Motor control frequency converter

Power

Power cord

Equipment power supply

Data

USB data cable

Connection between computer and machine

Control

Manual pulse generator

Manual operation of axis movement

Hand Tools

Hex wrenches

1.5–10 mm, 9 pcs

Spindle Tools

Spindle wrenches

14 mm and 17 mm open-end wrenches

Materials

Wood substitute material

For practice use

Optional Upgrade Accessories

No.

Type

Name

Description

PCS

Price

Transmission

Grinding ball screw

1204 and 1604 grinding ball screw upgrade

$220

Spindle

40,000 rpm spindle upgrade

Same 800W power with 65 mm spindle diameter

$140

Tool Holders

ER11 collet set

2 / 3 / 4 / 5 / 6 / 7 / 8 mm collets

$25

Square Material Clamps

Type-A self-centering vise

Reversible jaws, clamping range 50–75 mm

$30

Square Material Clamps

Type-B self-centering vise

Enlarged jaws, clamping range 0–100 mm

$140

Round Material Clamps

80 mm 4-jaw chuck

Hand-tightened chuck, 48 mm stroke height, for round and square material

$60

Round Material Clamps

80 mm 3-jaw chuck

Mechanical chuck, 66 mm stroke height, better concentricity than 4-jaw chuck

$65

Collet Chuck

ER40 collet chuck

High concentricity, compatible with Φ4–30 mm material

$40

Collet Set

ER40 collets

6 / 8 / 10 / 12 / 15 / 18 / 20 / 25 / 28 / 30 mm collets

$65

Collet Chuck

ER50 collet chuck

Compatible with ER50 collet chuck, holds Φ4–36 mm material

$40

Collet Set

ER50 collet option

Choose your own size from 4–36 mm, priced per piece

$12

Fixture Options

Choose fixture options for square materials, round materials, dental parts and special machining applications.

Vacuum Chuck

Self-Centering Vise

3 Jaw Chuck

4 Jaw Chuck

ER40 / ER50 Collet

Dental Chuck

Machining Cases

Aluminum impeller machined by Desktop NC Turbo

Al 6063 Impeller

Metal Processing

Object Carving

Dental Machining

Need a Compact 5-Axis CNC Solution?

Contact us for Desktop NC Turbo quotation, fixture recommendations, machining application advice and custom process solutions.
