Top 2 Desktop Injection Molding Machine
25-Ton Clamping | 150 MPa Injection Pressure | 400 °C Heating | Compact Desktop Solution
High-performance injection molding for prototyping, small batch production, and R&D labs.
Quote ↓ BrochureFeatures
✔ Wide Mold Compatibility
✔ Up to 400 °C Barrel Heating
✔ Intuitive Touchscreen Control
✔ Active Ejector System
✔ Compact Industrial Design
✔ Supports Engineering Plastics
Material Capability
PC, ABS, POM, PA, TPE, PMMA, and other engineering plastics
Top 2 vs Competitors
Feature
Top 2
APSX / Babyplast
Injection Pressure
150 MPa
Lower
Max Temperature
400 °C
~250 °C
Clamping System
Direct Hydraulic
Limited / Compact
Material Range
ABS / PC / Engineering Plastics
Limited
Demo Video
Watch the Top 2 desktop injection molding machine in action.
Technical Specifications
Specification
Value
Machine Dimensions
L190 × W95 × H125 cm
Rated Power
6.5 kW
Net Weight / Gross Weight
400 kg / 500 kg
Clamping Force
25 tons
Injection Pressure
150 MPa
Plunger Diameter
Φ25 mm
Max Injection Volume
50 g (PS)
Mold Size
L270 × W275 mm
Max Mold Thickness
350 mm
Open Stroke
200 mm
Ejector Stroke
60 mm
Heating Zones
4
Max Temperature
350 °C default, 400 °C optional
Injection Type
Hydraulic Plunger
Lead Time
30 Days
Optional Accessories
No.
Name
Description
Price
1
12 kW Transformer
AC 110 V to 220 V
$299
2
Insulation Cotton
Temperature can reach 400 °C
$29
3
2 kg Dryer
Capacity 2 kg, N.W.: 15 kg
$699
4
50 kg Loader
Conveying capacity: 50 kg/h, N.W.: 3 kg
$299
5
15 kg Storage Drum
Capacity 15 kg
$169
6
3-Axis Injection Molding Robotic Arm
Automatic picking and molding assistance
$1249

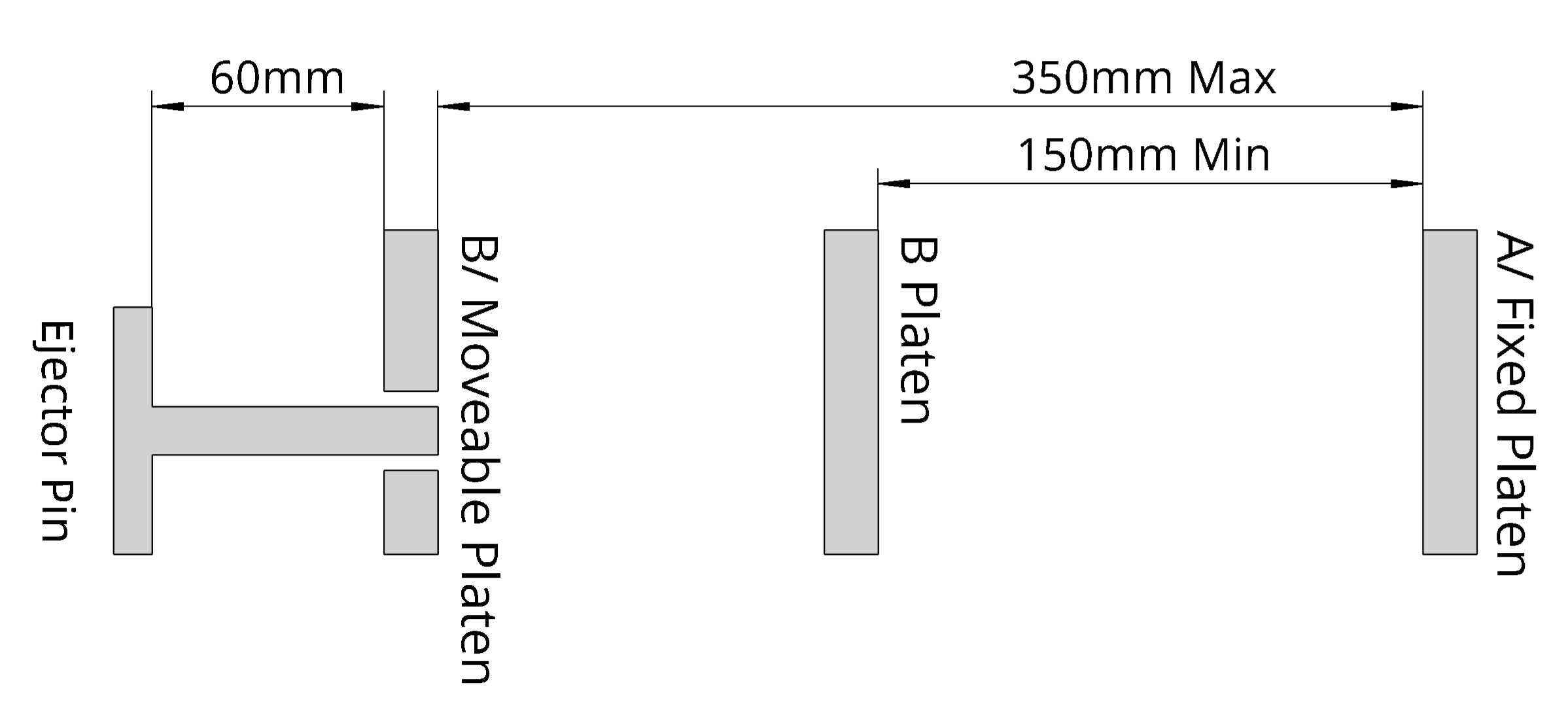

Platen Stroke

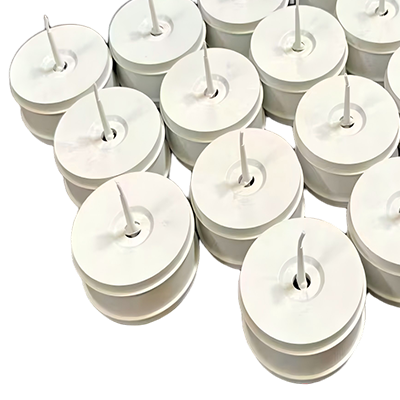

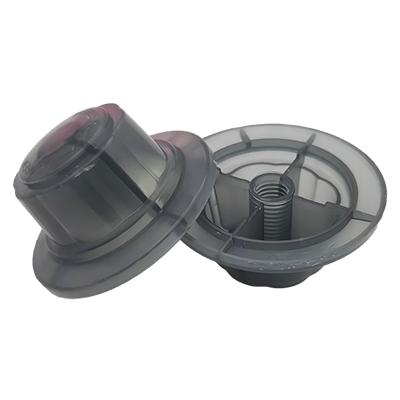

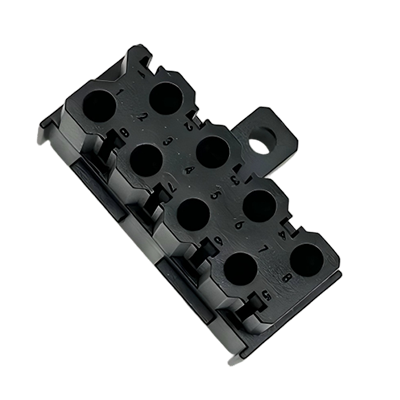

Case
Warranty
① Warranty is 12 months; within this period, free parts for non-human damage and remote replacement guidance are provided.
② After warranty, parts are offered at cost or purchase channels will be provided.
FAQ
Can it process high-performance engineering plastics?
Yes, it supports PC, ABS, POM, PA, TPE, PMMA, and more.
What is the maximum injection temperature?
Up to 400 °C with four heating zones.
Is it suitable for small batch production?
Yes, it is designed for prototyping and low-volume manufacturing.
