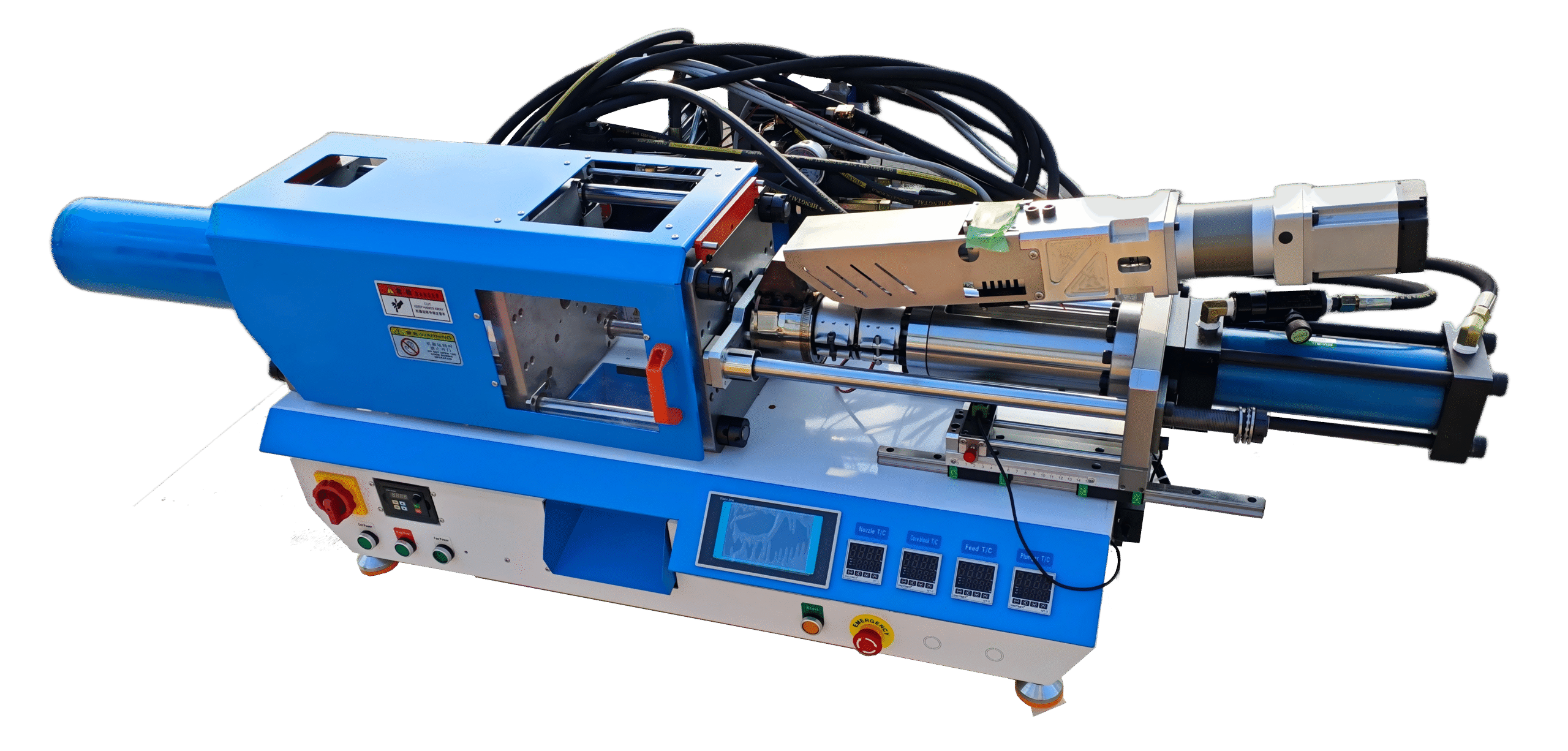

Desktop Injection Molding Machine Ultra 2
Ultra 2 is a 35g hydraulic desktop injection molding machine for makers, educators, engineers and low-volume production. With 7-ton hydraulic clamping, 5 MPa LPHU, active ejection, 4-stage heating and optional 400°C temperature, it bridges the gap between prototyping and small-scale manufacturing.
Hydraulic Desktop Injection in a Compact Format
Ultra 2 offers comprehensive upgrades in control, clamping, mold adaptability, temperature capability and production efficiency. It is designed for rapid product development, education, labs, small workshops and small-batch production.
Compact Design, Broader Material Capability & Easier Operation
Ultra 2 keeps the compact desktop form while improving mold compatibility, high-temperature capability, touchscreen operation and product ejection.
Greater Mold Compatibility
Default 100 mm mold opening stroke with optional 150 mm stroke, plus optional 300 mm mold thickness for broader mold applications.
High-Temperature Injection
Four-stage heating supports default 350±1°C and optional 400±1°C temperature capability for engineering plastics.
Touchscreen Operation
The color touchscreen and multi-language UI make parameter setting and operation easier for both beginners and professionals.
Active Ejection
Products can be automatically ejected after injection, reducing manual handling and helping improve cycle efficiency.
Compact Industrial Design
The compact desktop form fits labs, education spaces, small workshops and product development studios.
Small-Batch Production
Hydraulic clamping and hydraulic plunger injection help produce precise plastic parts for prototyping and low-volume manufacturing.
Machine Structure & Hydraulic Injection Workflow
Ultra 2 combines an injection unit, hydraulic clamping unit and low-pressure hydraulic system to form a compact desktop injection platform for prototyping and low-volume production.

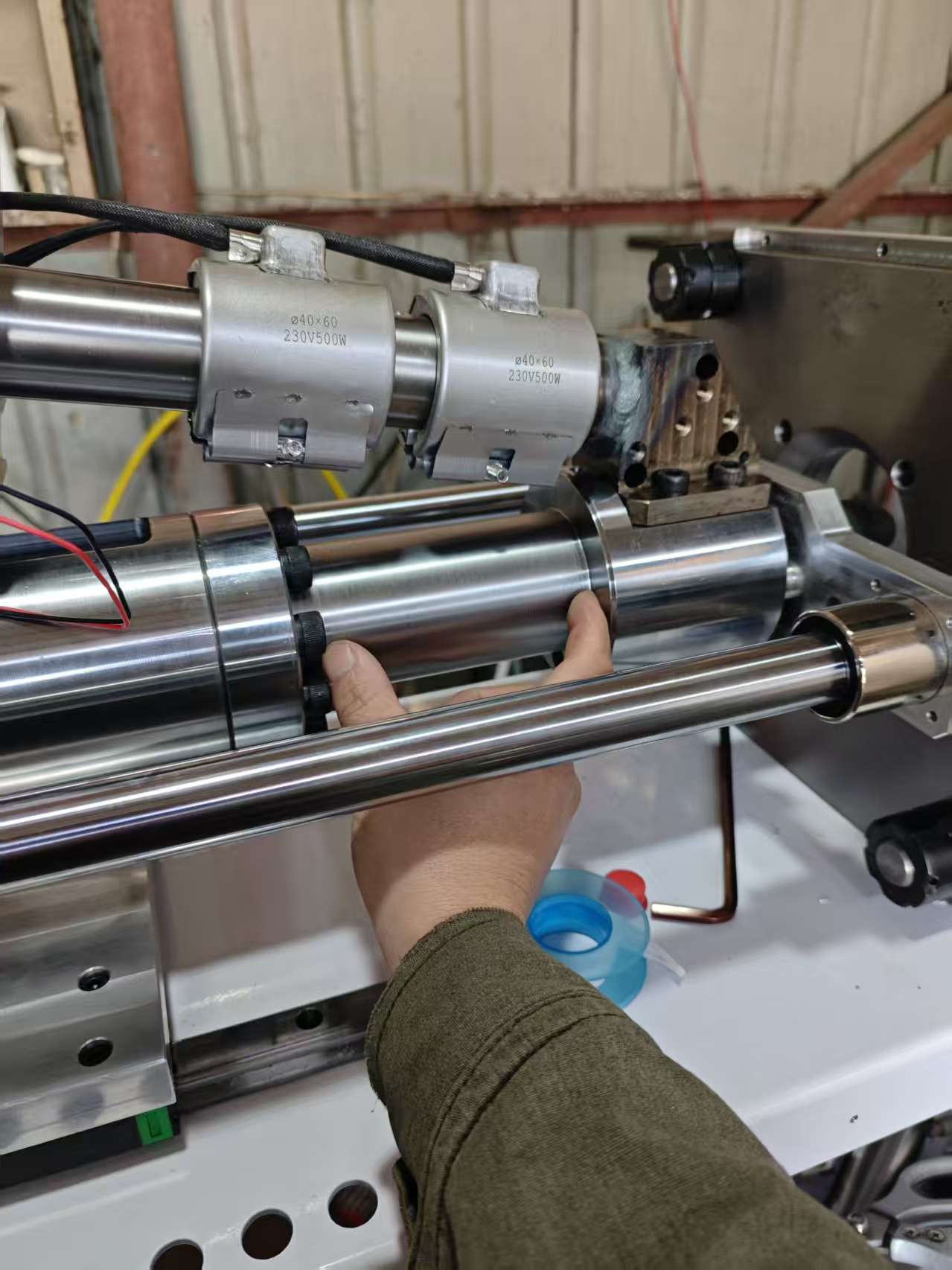

Injection Unit
The injection unit uses hydraulic plunger injection to deliver stable injection pressure and repeatable shot volume for small plastic parts.
- Hydraulic plunger injection
- Φ25 mm plunger diameter
- 35g max. shot weight for PS
- 120 MPa max. injection pressure

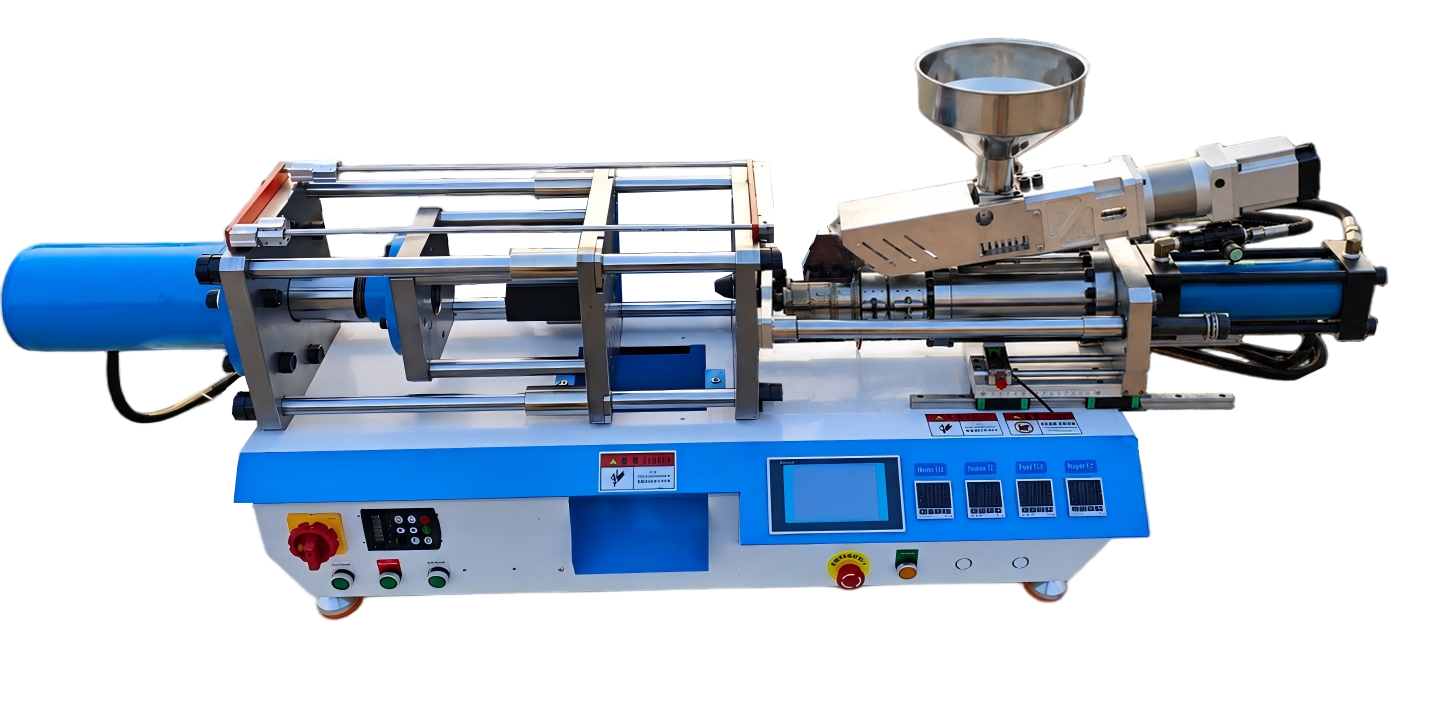

Clamping Unit
The hydraulic clamping unit provides stable mold closing and mold clamping force, helping the mold remain secure during injection.
- 7-ton clamping force
- Hydraulic clamping method
- Default 100 mm mold opening stroke
- Optional 150 mm mold opening stroke
Hydraulic System
The low-pressure hydraulic unit provides stable hydraulic power for injection and clamping, improving pressure control and response.
- LPHU hydraulic unit
- 1.5 kW hydraulic station
- 5 MPa hydraulic pressure
- Stable response for injection cycles
Video & Machine Preview
Technical Specifications

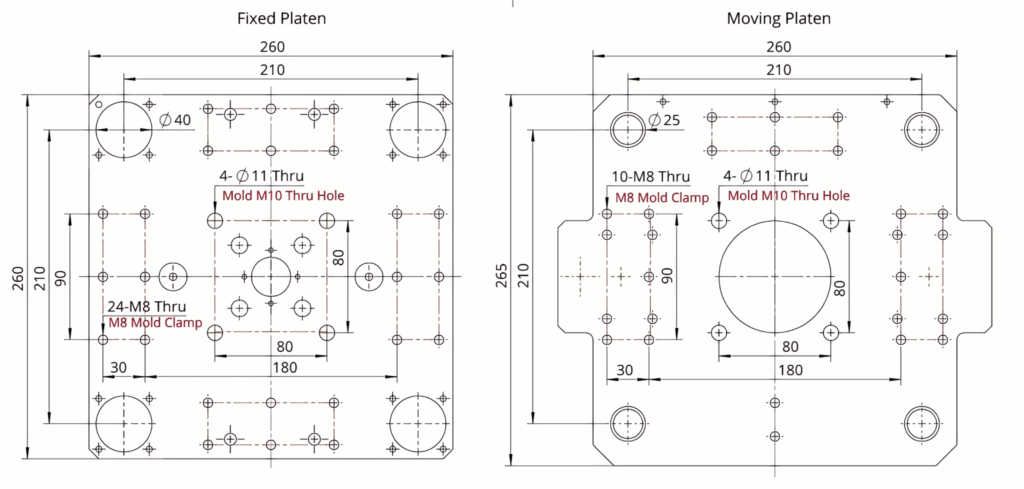

Mold Platen
Mold Platen
Use the platen drawing and STEP/PDF file before designing molds. This helps ensure the mold mounting holes, clamping positions and injection position match the machine structure.
- Max. mold size: L184 × W260 mm
- Default max. mold thickness: 266 mm
- Optional max. mold thickness: 300 mm
- STEP and PDF mold platen file available
Optional Accessories & Upgrades
Optional accessories from the 2026 Ultra 2 brochure are preserved below.
Standard Package & Related Modules
The brochure identifies the machine and related hydraulic / feeding modules. Optional peripheral devices can be configured based on production needs.
Professional Mold Solutions
Mold design and manufacturing services are available for users who need a complete path from part idea to molded sample.
Requirement Submission
Specify product material, function and production requirements, then submit the STEP file.
Review & Design
Evaluate manufacturability, mold type, mold structure, gate location and necessary design adjustments.
Detailed Design
Create assembly drawings, part drawings, select mold materials and provide STEP files for confirmation.
Flow Analysis
Optional flow and cooling simulation can be used to optimize the mold design before manufacturing.
Mold Manufacturing
Mold manufacturing can include CNC machining, EDM, grinding, fitting and assembly processes.
Testing & Validation
Trial runs, sample production, process parameter testing and adjustments are performed before delivery.
Mold Design
Free design of plastic injection molds is available for diverse needs, including 3D printed mold cores, separable injection molds and other small-batch solutions.
Mold Manufacturing
Mold manufacturing follows industrial injection mold processes to ensure precision, durability and stable sample production.
FAQ
In non-saturated order conditions, the machine manufacturing cycle is about 20–25 days, and the mold design and manufacturing cycle is about 20–25 days.
Molds generally use Cr40 mold steel with a mold life of ≥290,000 times. Detailed price depends on 3D model data and material information. Reference price: small simple mold $510; small mold with core pulling mechanism $876.
Air freight usually takes about 7 days; sea shipping takes about 30–45 days. Auto express is available in Russia and Central Asia, taking about 25–45 days. Exact shipping price requires detailed address confirmation.
The maximum design size of the mold is approximately L200 × W160 × H80–130 mm, and the actual part size should be smaller than the mold size.
Most general plastics and engineering plastics can be used. Typical materials include PP, PE, POM, PA, PLA, TPE and PMMA. Different plastics melt and flow differently, so injection settings should be adjusted by material.
Operating instructions, operating videos and engineer online guidance training can be provided.
Warranty & Service Support
12-Month Warranty
Within 12 months, free parts for non-human damage and remote replacement guidance are provided.
After-Warranty Parts
After the warranty period, parts are offered at cost or purchase channels will be provided.
Online Training
Operating instructions, operating videos and engineer online guidance can support new machine setup and use.
Ready to Start 35g Desktop Injection
Contact us for Ultra 2 quotation, mold compatibility confirmation, optional accessory selection and injection workflow support.
