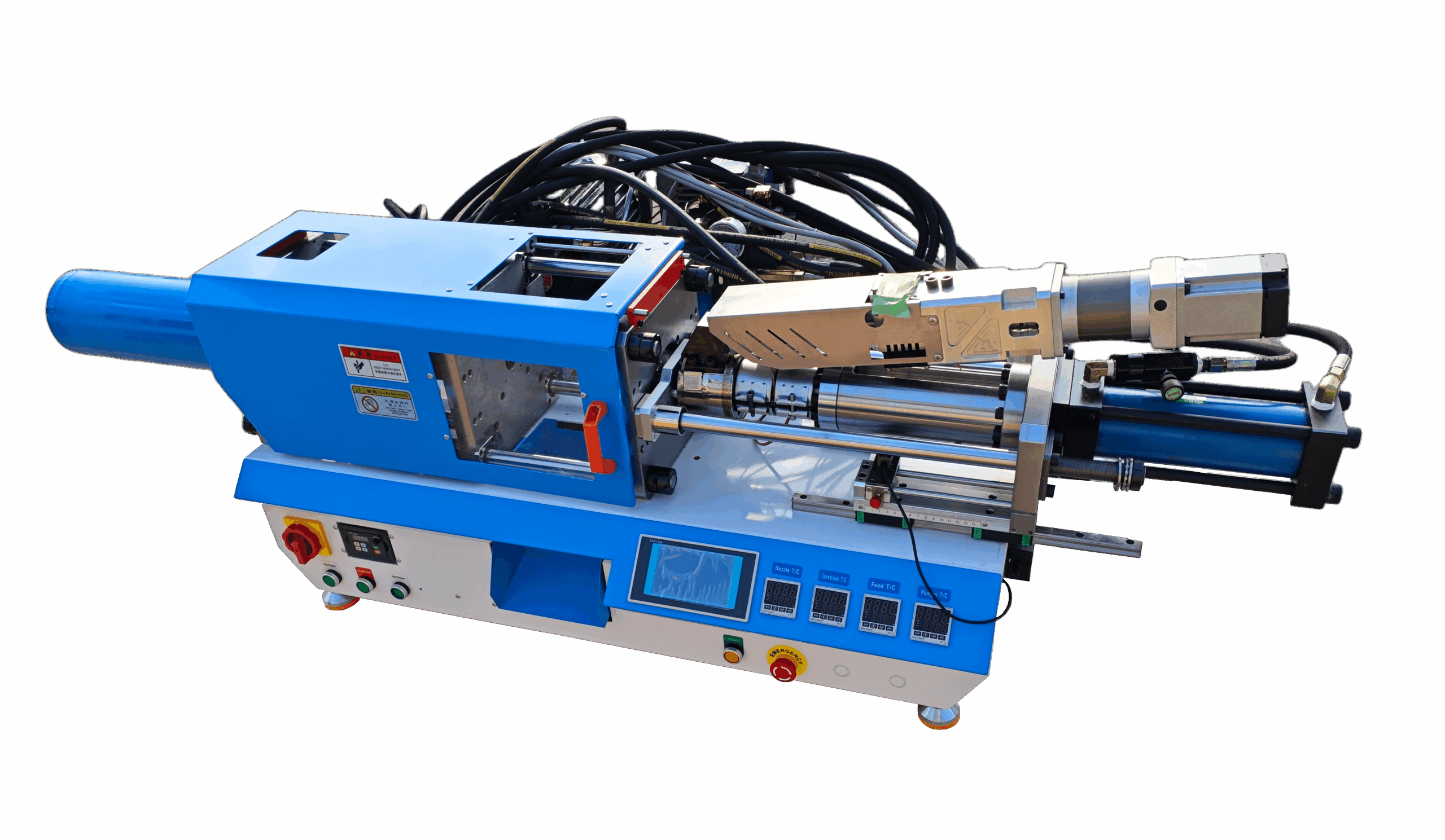

MAX 2
Desktop Injection Molding Machine
Industrial 16-ton hydraulic system designed for precision plastic parts, prototyping, and small batch manufacturing.
Request Quote Get Brief
Why MAX 2
Reliable Clamping Force
16 tons hydraulic system ensures stable, flash-free molding.
Smart Control System
Color touchscreen with multi-language UI for easy operation.
High-Temperature Capability
Supports engineering plastics with stable thermal control.
Active Ejection System
Automatic ejection improves efficiency and reduces cycle time.
Structure
Injection Unit
Independent plasticizing system stabilizes injection volume.
Clamping Unit
Direct hydraulic locking ensures fast mold closing.
Hydraulic System
Stable pressure output system.
Control Unit
Low energy and fast response system.
Specifications
| Equip Dimensions | L188×W42×H76 cm | Total Power | 5.5 kW |
| N.W | 335 kg | G.W | 475 kg |
| Packing Size | L203×W114×H93 cm | Clamping Force | 16 Tons |
| HPSU | 4 kW, 14 MPa | Power Supply | 220 V Single-phase |
| Plunger Diameter | Φ25 mm | Max. Shot Weight (PS) | 50 g(PS) |
| Max. Mold Size | L184×W260 mm | Max. Mold Thickness | Std 260 /Opt 300 mm |
| Clamping Method | Hydraulic | Molding Method | Hydraulic Plunger Injection |
| Max. Injection Pressure | 120 MPa | Max. Shot Speed | 150 mm²/s |
| Mold Opening Stroke | Std 100 /Opt 150mm | Max. Heat Temp | Std 350 /Opt 400±1℃ |
| Ejector Stroke | 60 mm | Heating Stage | 4 |
| Lead Time | 25 days | Materials | PP / PE / POM / PA / PLA / TPE / PMMA etc |

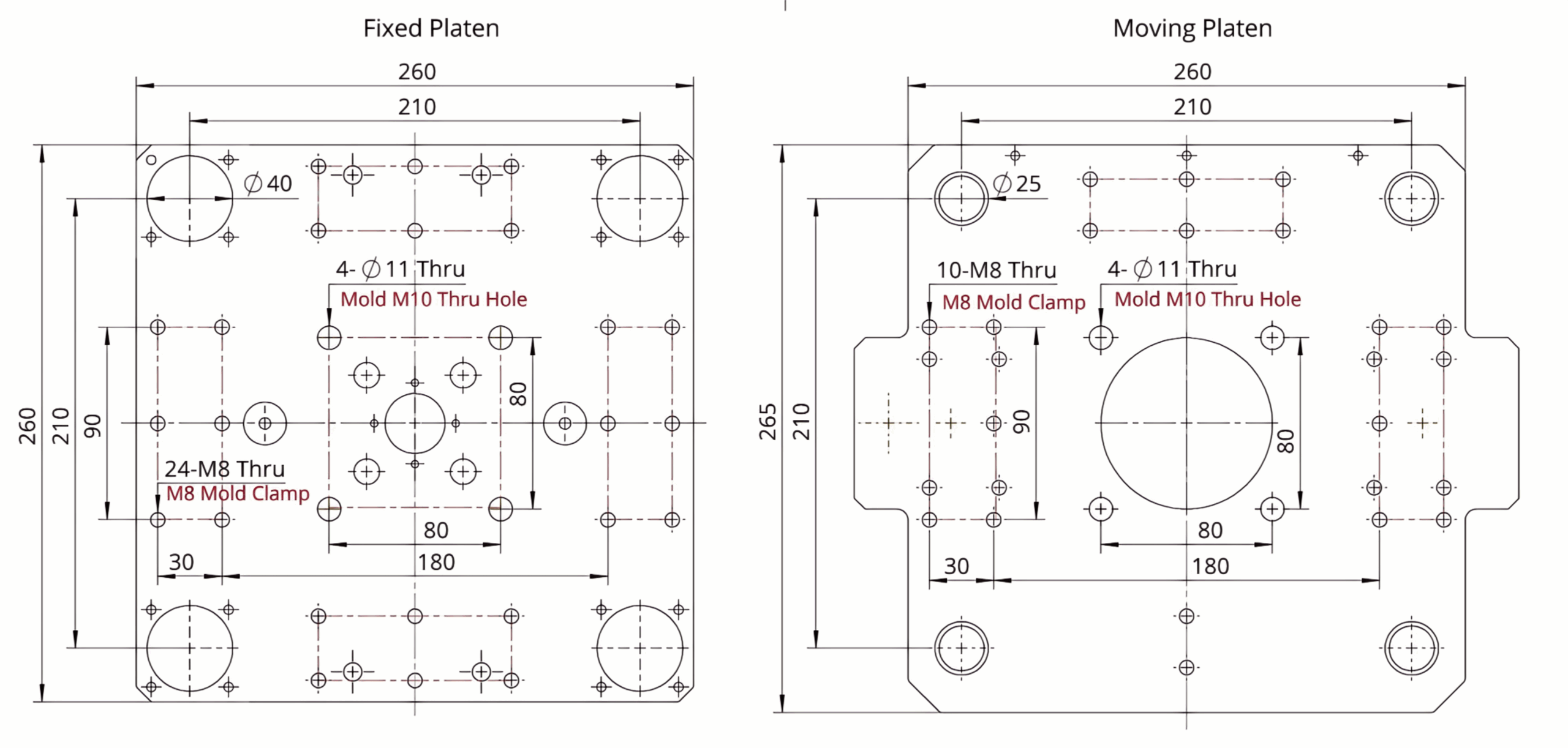

Platen
Mold Installation
The mold must be installed according to the template to ensure precise compatibility with the injection molding machine.

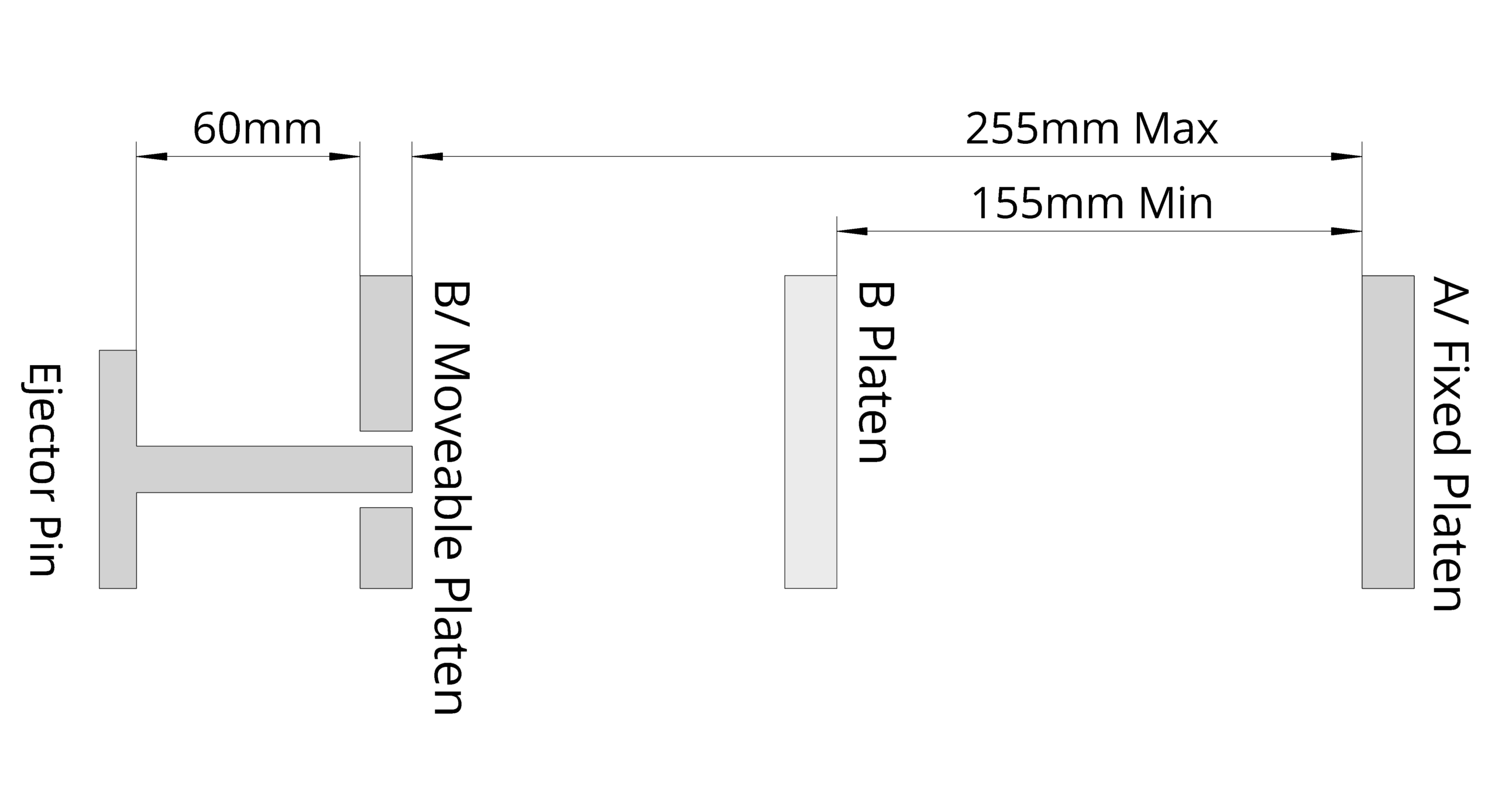

Stroke
Mold Development Process
Provide STEP file, material and product requirements.
Analyze mold structure and manufacturability.
Generate 3D mold assembly and drawings.
Optimize injection and cooling.
CNC machining, EDM, grinding and assembly.
Trial molding and optimization.
Warranty
12-month warranty for non-human damage quality issues.
After warranty, parts and repairs are provided at cost.
