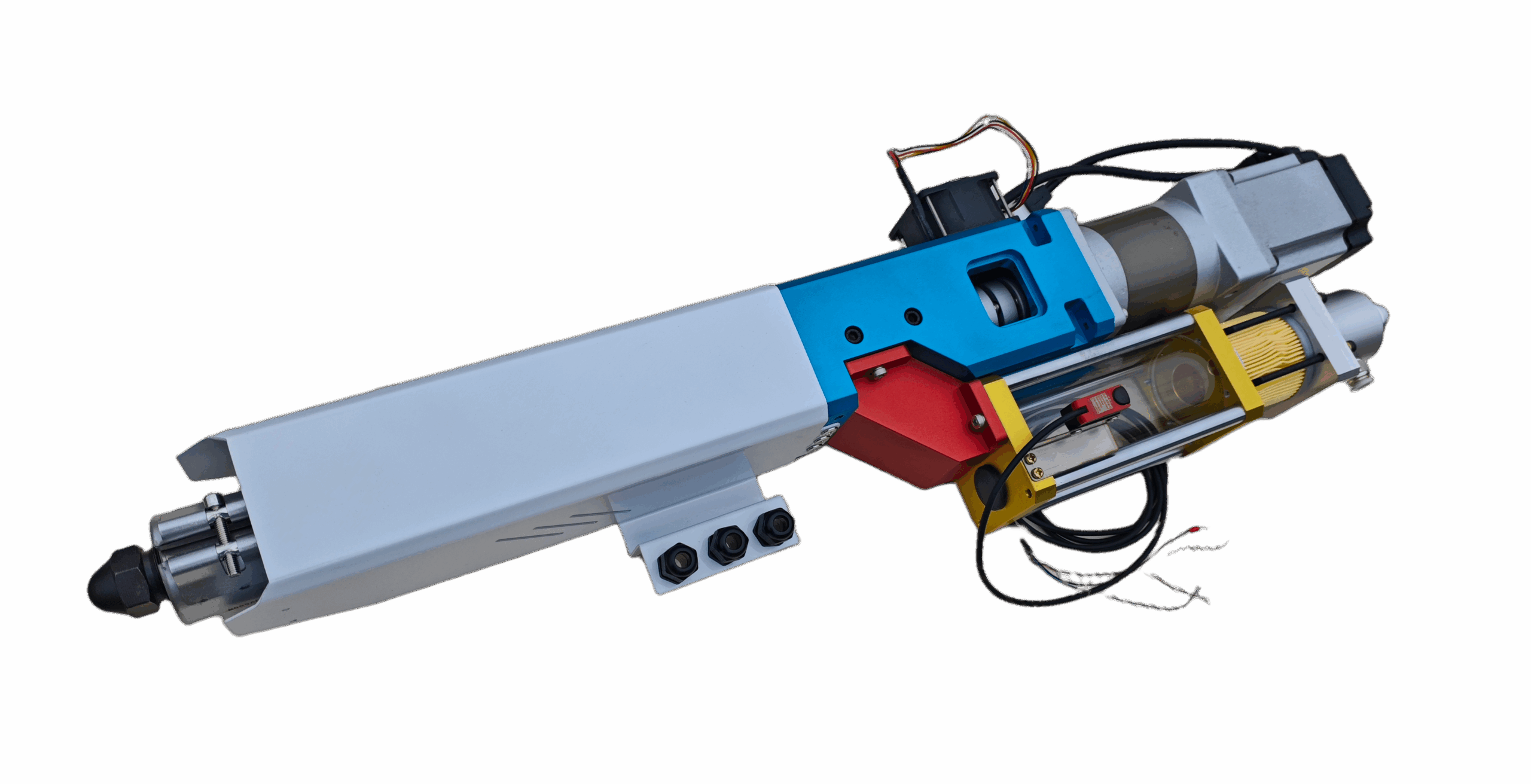

Ultra 2 Pellet Extruder
FGF industrial pellet extrusion system for large-format 3D printing with high automation and stable output.
Get Brief
Features
Touch Control + 0-10V
Industrial external system integration.
Industrial external system integration.
Dual-Zone Heating
Up to 400°C thermal stability.
Up to 400°C thermal stability.
Auto Feeding 7 kg/hr
Continuous stable pellet supply.
Continuous stable pellet supply.
Precision Screw
1:18 L/D alloy structure.
1:18 L/D alloy structure.
Video

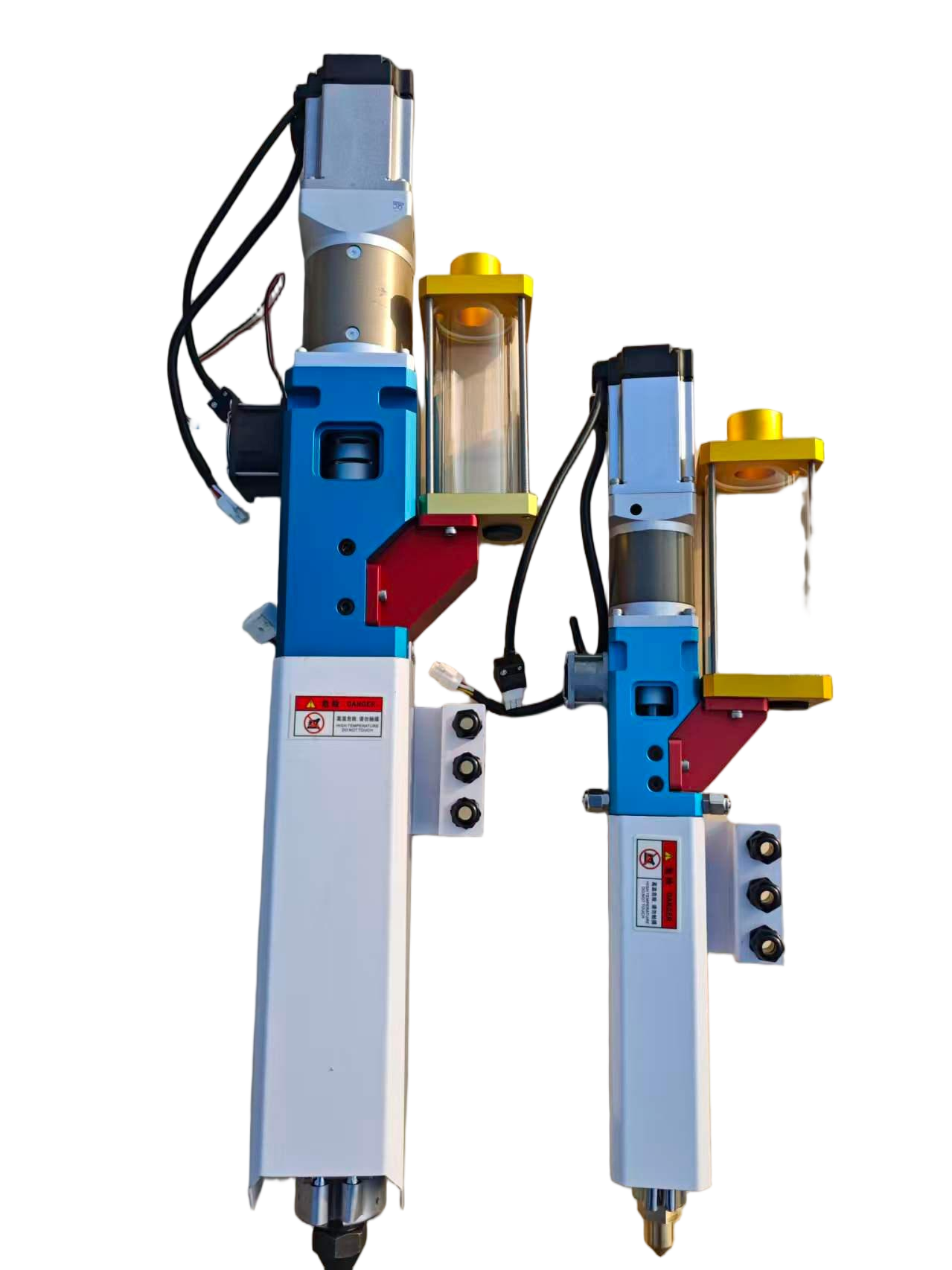

Ultra 2 vs Pro
Ultra advantages
✅ FGF Pellet Extrusion System
✅ Touchscreen + 0–10V Control
✅ Automatic Feeding System
✅ Up to 400°C Heating
✅ Continuous Industrial Production
Technical Specifications
| Item | Specification | Item | Specification |
|---|---|---|---|
| Carton | W100×D48×H46 cm | G.W. | 29 kg |
| Product | W90×D40×H40 cm | Total Power | 3 kW |
| Extruder N.W. | 16 kg | Heating Power | 2 kW |
| Controller N.W. | 5 kg | Max Temp | 350°C (400°C opt.) |
| Heating Zones | 2 | Hopper | 350 ml |
| Power | 220V 60Hz | L/D Ratio | 1:18 |
| Screw | Φ25 mm | Nozzle | 1.75 mm |
| Extrusion | 6 kg/hr | Material | PLA / ABS / PETG |
| Feeding | 7 kg/hr | Application | Robotics / Large printing |
Standard & Optional
Standard Package
| No. | Item | Qty | Description |
|---|---|---|---|
| 1 | Pellet Extruder Unit | 1 | / |
| 2 | Servo Controller | 1 | Motor & temperature control system |

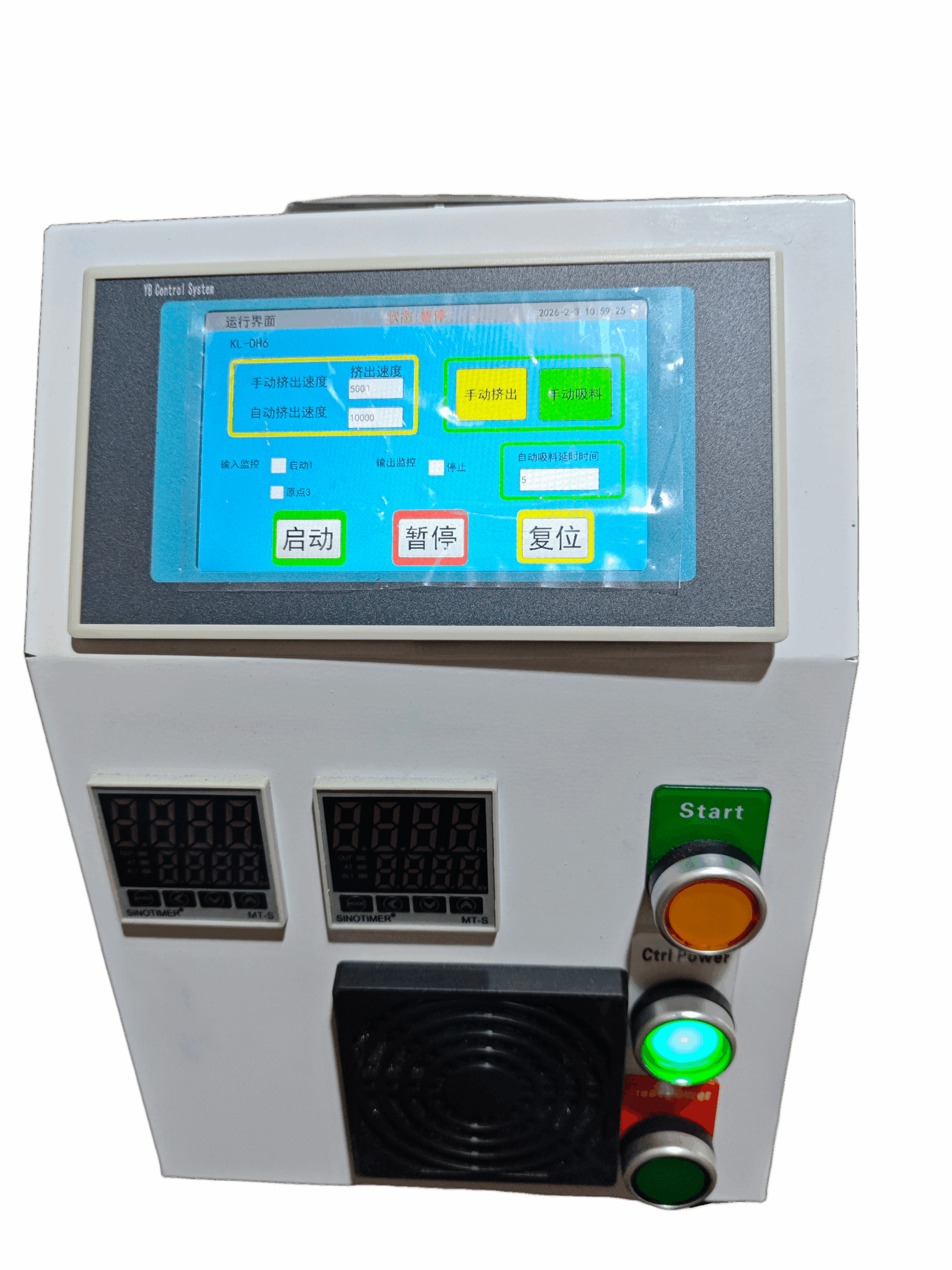

Servo Controller
Optional Upgrades
| Category | Specification | Qty | Price (USD) |
|---|---|---|---|
| Cable | 5 m cable | 1 | 200 |
| Nozzle | 3 mm nozzle | 1 | 150 |
FAQ
What is FGF technology?
FGF uses plastic pellets instead of filament for lower cost and higher throughput.
What materials are supported?
PLA, HIPS, PETG, ABS and engineering plastics.
Can it integrate with automation systems?
Yes, 0–10V analog control supports robotic and CNC integration.
Warranty
6-month warranty. Free replacement for non-human damage and remote technical support included. After warranty, spare parts available at cost.
