DESKTOP pick and PLACE Machine

Revolutionary Evolution


Experience precision and efficiency with the Desktop SMT V6 Pro, a cutting-edge pick-and-place machine designed for high-speed PCB assembly. With dual placement heads, three-vision cameras, and a compact design.
it is perfect for small-scale and professional environments. Optimize your production with intelligent software and customizable bulk feeders.

Get Intro

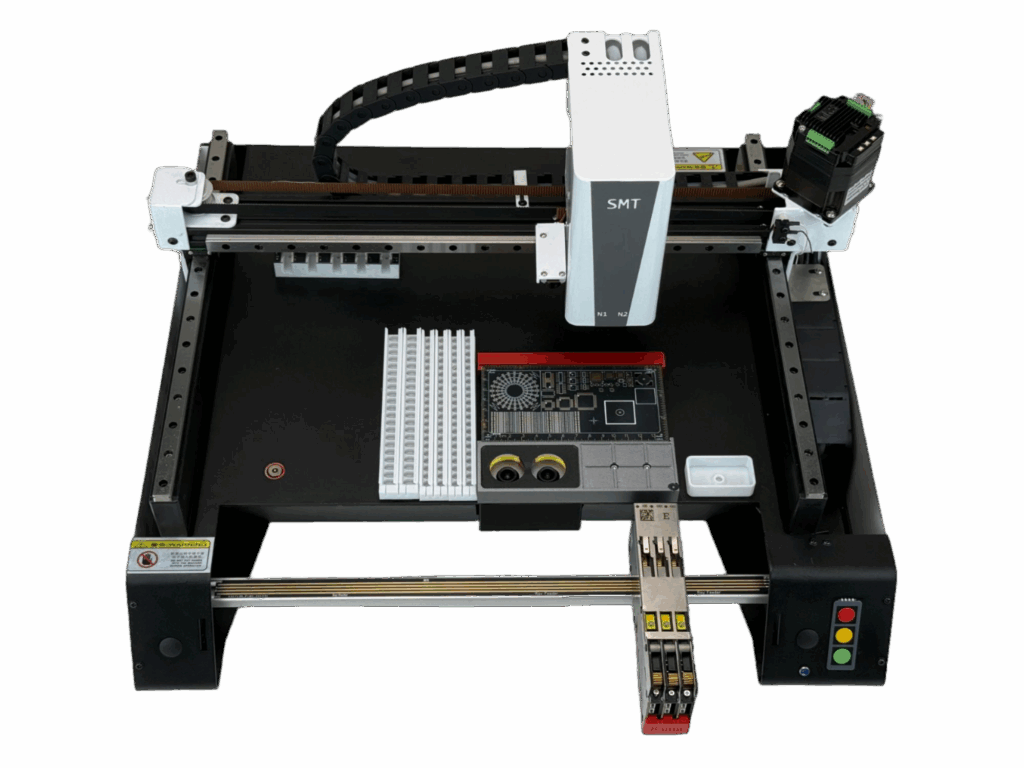

Desktop SMT Machine V6 Pro automatic pick and place system for PCB assembly by OrigMaker

Complete Upgrade

Explore the limits of desktop pick-and-place machines with user-friendly and logically advanced software.

V6 Pro electric feeder for desktop SMT machine automatic component feeding system for PCB assembly

Fast Speed

Thanks to powerful S-curve motion control, it is 80% faster than similar machines, with a placement speed of up to 3,000 CPH and minimal vibrations.

V6 Pro dual placement head desktop SMT machine for high speed PCB pick and place assembly by OrigMaker

High Precision

Supports a wide range of common packages,with the smallest being 0402.Closed-loop control motor stabilizes without losing fabric

V6 Pro intelligent SMT software interface for desktop pick and place machine real time control and PCB programming system

Intelligent Software

Simplifies operations with user-friendly controls, ensuring precision placement every time.

V6 Pro multi feeder system for desktop SMT machine supporting multiple component tape reels for efficient PCB assembly

Various Feeder

Supports visual scatter feeders, easily recognizing even polarized components.Vision Feeder,Auto Feeder,Strip Feeder,etc.

V6 Pro automatic tool changer for desktop SMT machine enabling fast nozzle and head switching for flexible PCB assembly

Auto Nozzle Changer

Up to 6-position nozzle library, facilitating
the mounting of components of various sizes in one go.

V6 Pro vision camera system for desktop SMT machine high precision PCB alignment and component recognition by OrigMaker

Dual Bottom Cameras

Faster speed with up to three cameras on the machine, offering high cost-performance ratio for machines under 2000 dollar.

Reasons to Choose Us

Choose from our range of flexible pricing options that cater to your specific needs.

Machine Comparison Grid
Software
Camera
Motor
Speed
Frame
E-Feeder
Nozzle Motor
Shipping
Warranty
Machine Image 1
Self-Developed
Triple
Close-Loop
2000-3000
Welded Sheet Metal
Metal Gears
Custom high-strength
Whole machine
One Year
Machine Image 2
OpenPNP
Dual
Open-Loop
1500-2000
Profile Construction
Plastic
Easy-to-bend
Components
None

Specs

Desktop SMT Ultra Specs
Model
Desktop SMT Ultra
Position Accuracy
0.05 mm
Dimension
50 × 55 × 38 cm
Nozzle Types
Samsung CN30 CN40 CN65 CN140 CN220 CN400
Nozzle Quantity
2
Mounting Height
0 – 7 mm
N.W
28 kg
Omission Detection
Visual Inspection
Packaging
65 × 55 × 40 cm
Placement Angles
0 – 360°
Max PCB Size
200 × 300 mm
Placement Ranges
0402/0603/0805/1206, SOT23, SOP8/16 and equivalent chips
Auto Feeder
36 Channel (8 mm)
Voltage
220 V / 110 V

Auto Feeder

The self-developed feeder has undergone multiple iterations and is now in its fourth generation, supporting automatic barcode scanning for feeder addition, eliminating tedious repetitive tasks. It features all-metal gears, a compact design, and is elegantly small.

Auto Feeder

Default Delivery List

SortNameQuantityMark
EquipmentDesktop SMT Ultra1High-speed dual placement heads, Triple Vision, automatic head change
NozzleCN06510603，0805
CN14011206，Sop8
FeederStrip Feeder38mm×2、12mm×1
8mm Tri-tape Auto Feeder1Supports 0402 to Sop16, positioning accuracy 0.01mm
OthersNozzle Change Holder15 workstations, providing 4 nozzle replacements
Calibrate PCB1Calibration Position
Vacuum Pump1Provides vacuum power to the nozzle

Optional List

SortNameApplicable ComponentOD/mmID/mmPrice
NozzleCN03002010.70.28$4
CN04004020.70.4
CN0650603，08051.20.6
CN1401206，Sop8，sop82.21.1
CN220Sop8 sop163.62.2
CN400Sop8 & above large components6.24.0
Feeder8mm Strip Feeder8mm Wide Tape, 3D Printed$1.8
12mm Strip Feeder12mm Wide Tape , 3D Printed
16mm Strip Feeder16mm Wide Tape , 3D Printed
Vision FeederUniform luminescence, clear component outline recognition rate of 99%*Can’t be used for square component*Only one can be mounted on the magnetic base power supply$13
8mm Tri-tape Auto Feeder Tape Wide 8mm, positioning accuracy 0.01mm$40
12mm Dual-tape Auto Feeder Tape Wide 12mm, positioning accuracy 0.01mm$30
16mm Dual-tape Auto FeederTape Wide 16mm, positioning accuracy 0.01mm
Solder Paste Stencil Printing StationEffective size 170×170mm$52

Warranty

12-month warranty for quality problems caused by non-human factors
After the warranty period expires, parts will be replaced and repaired at cost price
