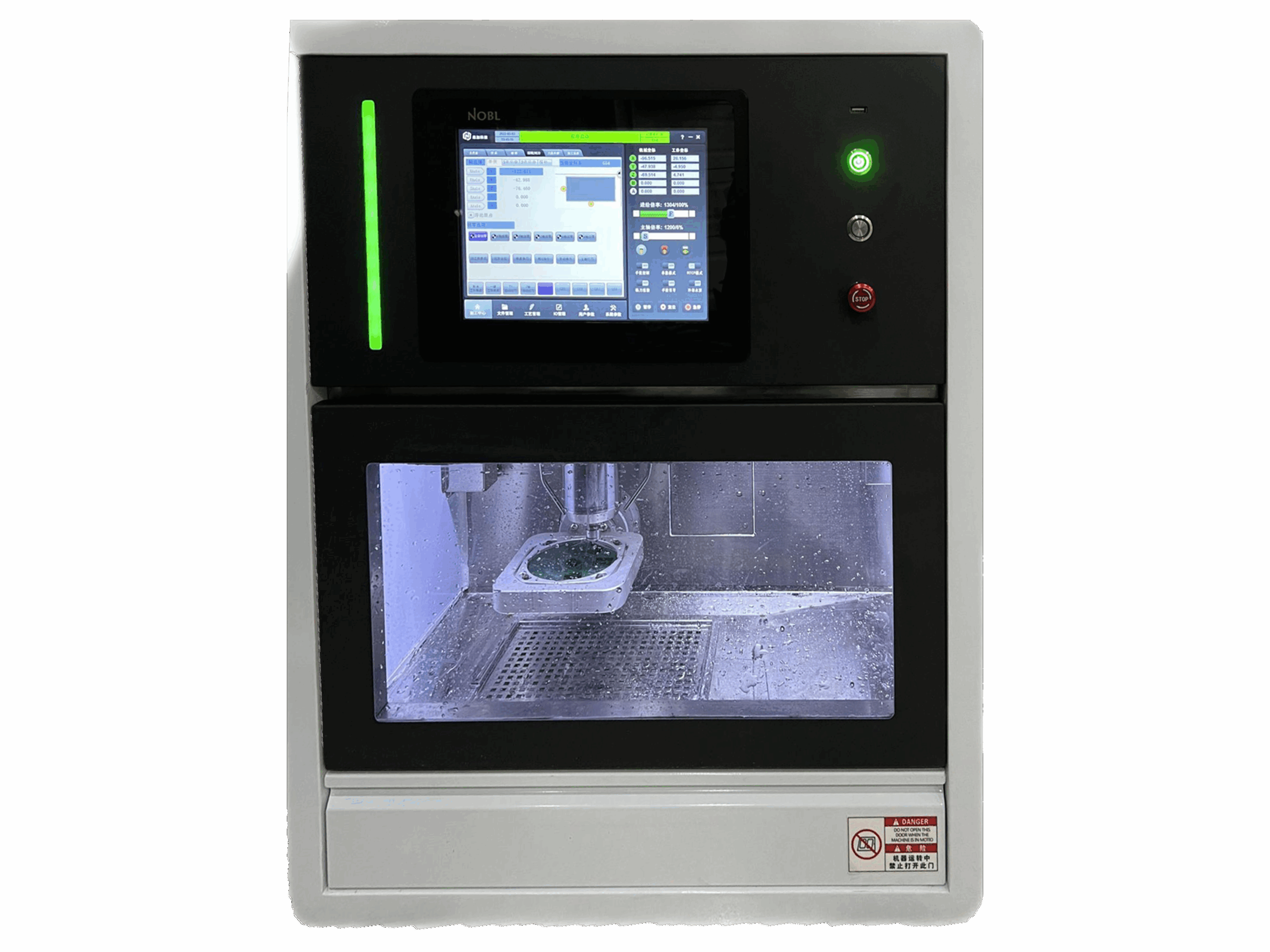

Dental Mill Pro 4X
4-axis desktop dental CNC milling machine with Automatic Tool Changer (ATC), designed for zirconia, titanium, PMMA, wax and composite materials.
Get Quote View Specs
Overview
Dental Mill Pro 4X is designed for professional dental laboratories requiring compact size, stable precision, and multi-material machining capability with automated tool changing system.
Engineered for Dental Precision
Compact Lab Footprint
Desktop size saves valuable workspace while delivering industrial level rigidity and precision.
Material Flexibility
Suitable for zirconia blanks, PMMA discs, wax blocks, resin boards and customized parts.
Reliable Motion System
Precision ball screw and linear guide structure for stable long-term production.
Clean Enclosed Design
Protects operator, reduces dust spread and improves professional clinic appearance.
Open CAM Workflow
Compatible with common CAD/CAM data export workflows for flexible integration.
Direct Factory Support
Fast response, spare parts supply and remote technical assistance available.
Applications
Built for modern dental laboratories and precision prototyping environments.
| Machine | |||
| Equipment Dimension | W750 × D490 × H780 mm | Equipment Weight | 75 kg (N.W) |
| Workbench Dimension | W130 × D130 mm | Max Load | 20 kg |
| XYZ Stroke | X200 × Y100 × Z100 mm | A Axis | 360° Rotary |
| Chuck Accuracy | ≤0.02 mm | Machining Accuracy | ≤0.05 mm |
| Ball Screw | 1204 C7 | Guideway | Hiwin MGN15 |
| Machining Speed | Up to 4000 mm/min (material dependent) | ||
| Materials | |||
| Machining Materials | Metal: Titanium alloy, cobalt chromium alloy, nickel chromium alloy, etc. | Non-Metal: Glass ceramics, composite resins, waxes, PEEK, PMMA, etc. | ||
| Electrical | |||
| Drive Motor | 24V DC Servo 1500 rpm | Spindle Motor | 1800W / 60000 rpm ISO10 |
| Drive Power | 220V Input / 24V 15A Output | Motion Controller | 10.1 inch industrial PC |
| Home Switch | Photoelectric sensing | Tool Setter | 2μm repeat accuracy |
| Software | |||
| Control Software | / | Toolpath Software | PowerMill / Fusion360 / MasterCAM / NX / SprutCAM |
Cost-Effective Solution for Dental Laboratories
Lower Investment
Reduce startup cost compared with premium European dental mills.
Faster ROI
Ideal for labs wanting in-house production without oversized budgets.
Flexible Customization
Voltage, spindle, enclosure and workflow options available.
FAQ
Can it machine zirconia?
Yes, Dental Mill Pro 4X is optimized for zirconia dry milling applications.
Does it support automatic tool change?
Yes, it includes an integrated ISO10 ATC system.
Is it suitable for dental labs?
Yes, it is designed specifically for dental laboratories and chairside production environments.
What materials can it process?
Zirconia, titanium, PMMA, wax, glass ceramics, and composite materials.
Get a Quote
Contact us for configuration recommendation, pricing and video demonstration.
