Low Pressure Injection Molding Machine-LP

Overview

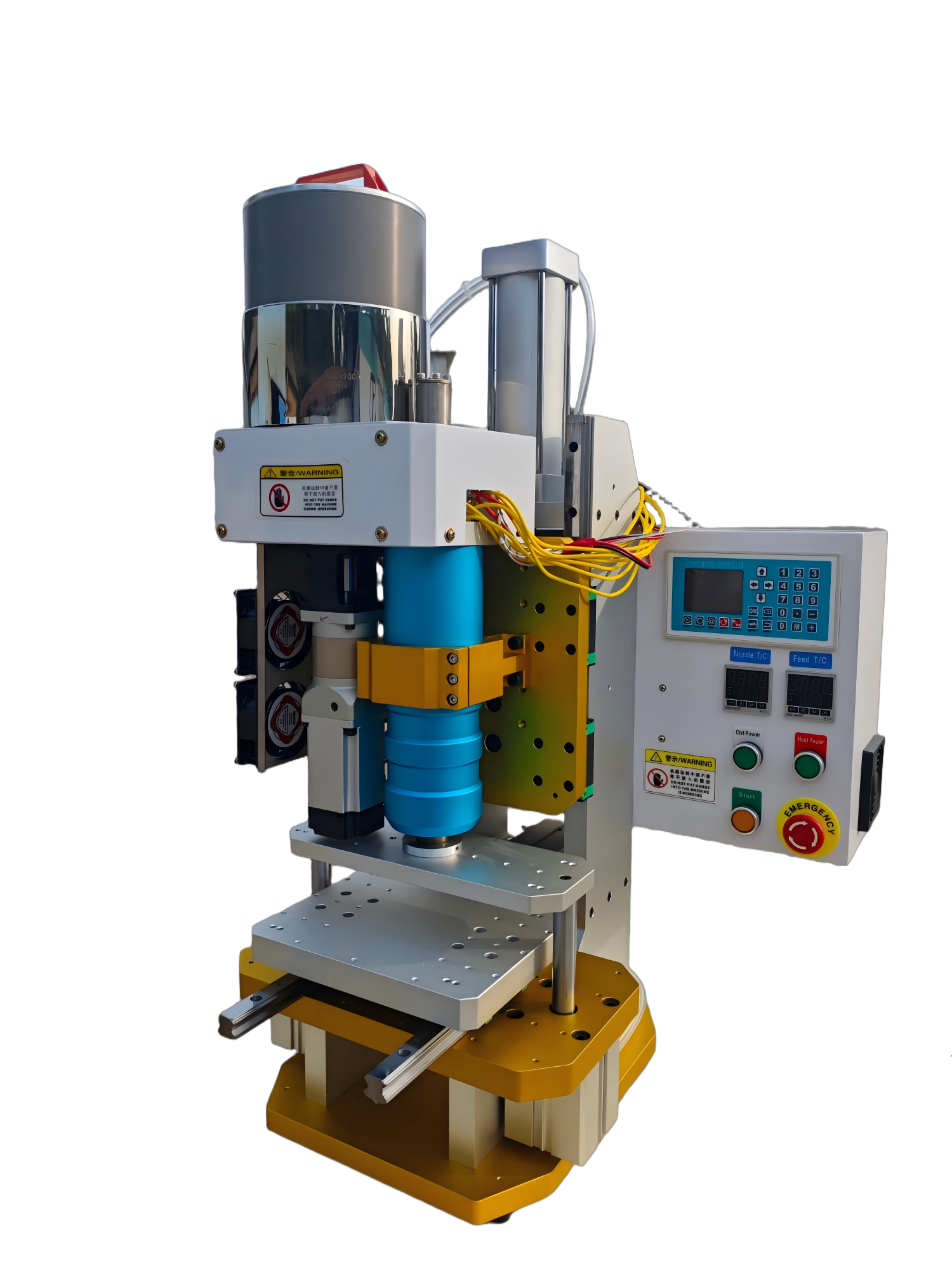

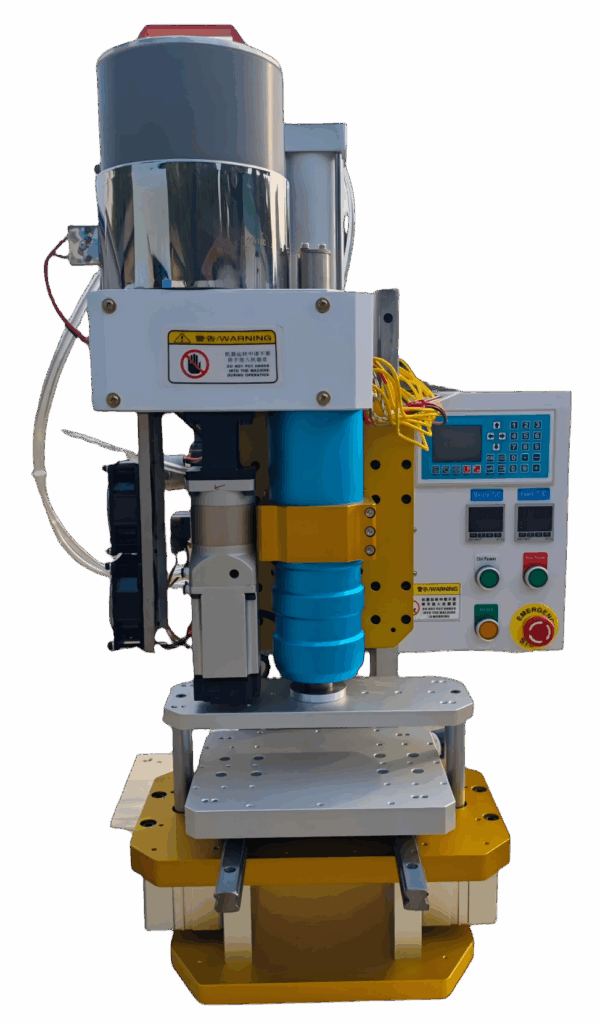

Desktop Low Pressure Injection Molding Machine – LP

This vertical low pressure injection molding machine offers precise, low-pressure molding ideal for electronic encapsulation and cable sealing. Its compact design saves space and improves mold operation efficiency. Equipped with dual-zone temperature control and precise clamping, it ensures stable, high-quality molding with polyamide hot melt adhesive.

Get Intro

Vedio

Low Pressure Injection Molding Machine

Features

leek Design, Superior Stability

The vertical low pressure injection molding machine heats polyamide hot melt adhesive to a molten state and uses a servo motor with dual-zone temperature control to achieve precise low-pressure injection, rapidly molding various complex plastic parts

Low Pressure Molding Process

Injection molding at lower pressures protects sensitive electronic components and reduces damage to molds and products.

High-precision Temperature Control

Multiple temperature zones ensure uniform material melting and improve molding quality.

Multi-material Compatibility

Compatible with polyamide hot melt adhesive and various other low-pressure molding materials.

Easy & Safe Operation

Equipped with an intelligent control system that supports precise clamping and stable production, ensuring operational safety.

Specs

Machine SizeW425×H670×D970 mmPower Supply220 V, 50 Hz
Air Pressure0.5 MPaTemp Control2 zones, K-type thermocouple
Max. Mold SizeL240×W180×H150 mmCylinder Capacity2.5 L
Max. Injection Volume1500 gInjection Accuracy±0.5 g
Power3 kWNet Weight95 kg
Injection MethodServo motor + metering pumpClamping MethodPneumatic downward pressing
Injection Pressure1.5 Bar – 40 BarTemp Range0 – 250℃
MaterialPolyamide hot melt adhesiveSpindle Down Stroke100 mm

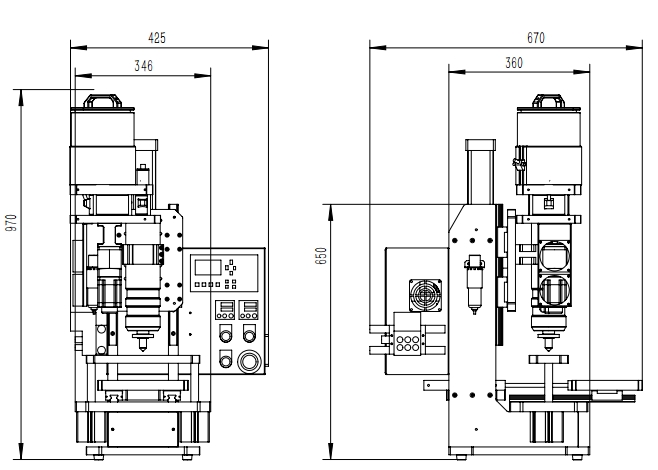

Structure

Warranty

  1. Warranty period is 12 months. Within warranty, non-human damages are covered with free parts and remote replacement guidance.
  2. After warranty, parts are available at cost price or through provided purchase channels.
