Desktop SMT Ultra -

DESKTOP pick and PLACE Machine

Revolutionary Evolution

Experience precision and efficiency with the Desktop SMT Ultra, a cutting-edge pick-and-place machine designed for high-speed PCB assembly. With dual placement heads, three-vision cameras, and a compact design.
it is perfect for small-scale and professional environments. Optimize your production with intelligent software and customizable bulk feeders.

Get Intro

Complete Upgrade

Explore the limits of desktop pick-and-place machines with user-friendly and logically advanced software.

Details of the electric feeder of automatic placement machine

Fast Speed

Thanks to powerful S-curve motion control, it is 80% faster than similar machines, with a placement speed of up to 3,000 CPH and minimal vibrations.

Details of the head of automatic placement machine

High Precision

Supports a wide range of common packages,with the smallest being 0402.Closed-loop control motor stabilizes without losing fabric

Details of the Software of automatic placement machine

Intelligent Software

Simplifies operations with user-friendly controls, ensuring precision placement every time.

Various Feeder

Supports visual scatter feeders, easily recognizing even polarized components.Vision Feeder,Auto Feeder,Strip Feeder,etc.

Auto Nozzle Changer

Up to 6-position nozzle library, facilitating
the mounting of components of various sizes in one go.

The vision camera of the desktop placement machine.

Dual Bottom Cameras

Faster speed with up to three cameras on the machine, offering high cost-performance ratio for machines under 2000 dollar.

Reasons to Choose Us

Choose from our range of flexible pricing options that cater to your specific needs.

A comparison display diagram of different models or functions of desktop placement machines.

Specs

Auto Feeder

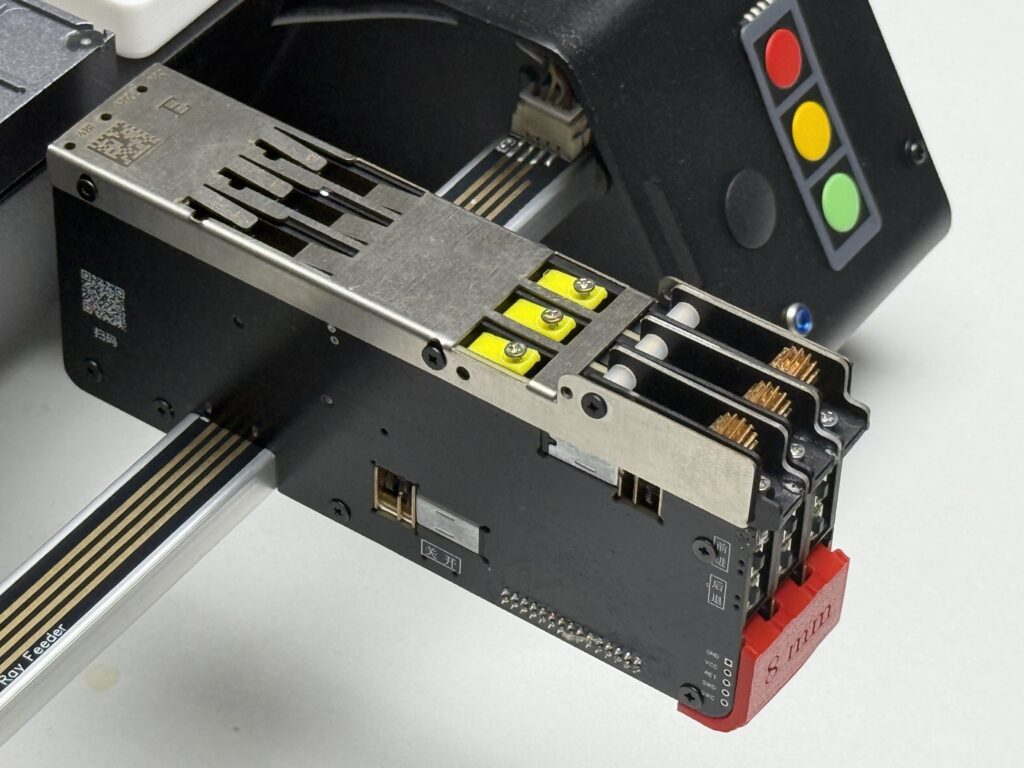

The self-developed feeder has undergone multiple iterations and is now in its fourth generation, supporting automatic barcode scanning for feeder addition, eliminating tedious repetitive tasks. It features all-metal gears, a compact design, and is elegantly small.

electric automatic feeders for desktop placement machine

Deatials

Real Photos

Side view of the desktop placement machine

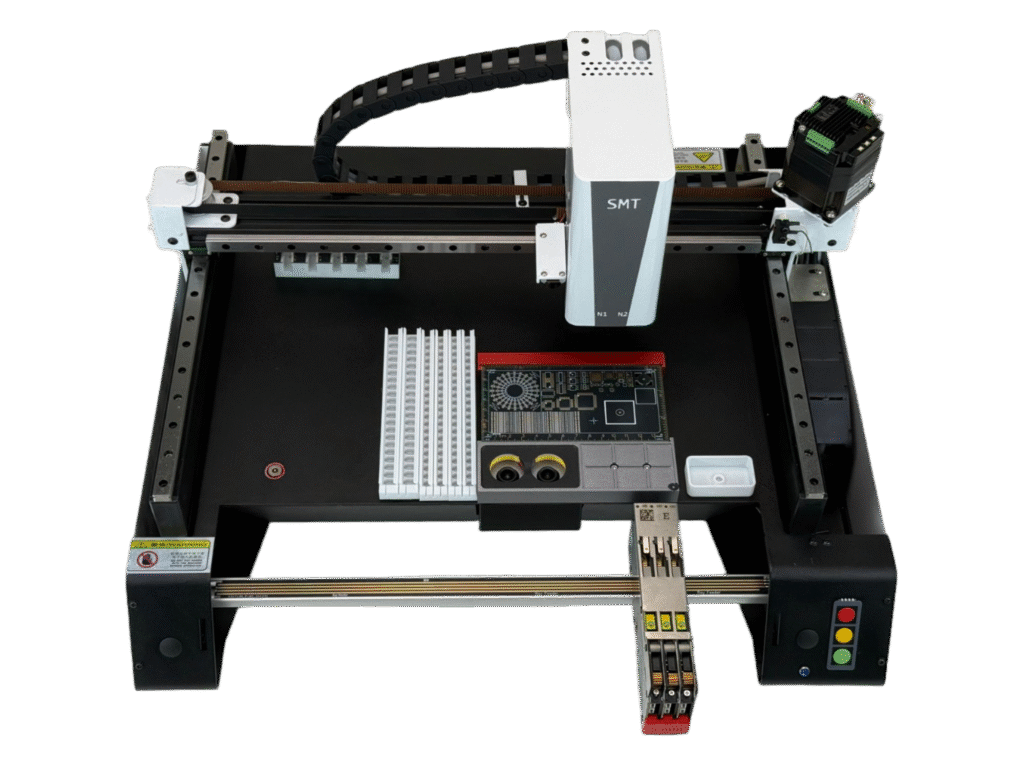

Working area of the desktop placement machine

Closed-loop stepper motor of the desktop placement machine.

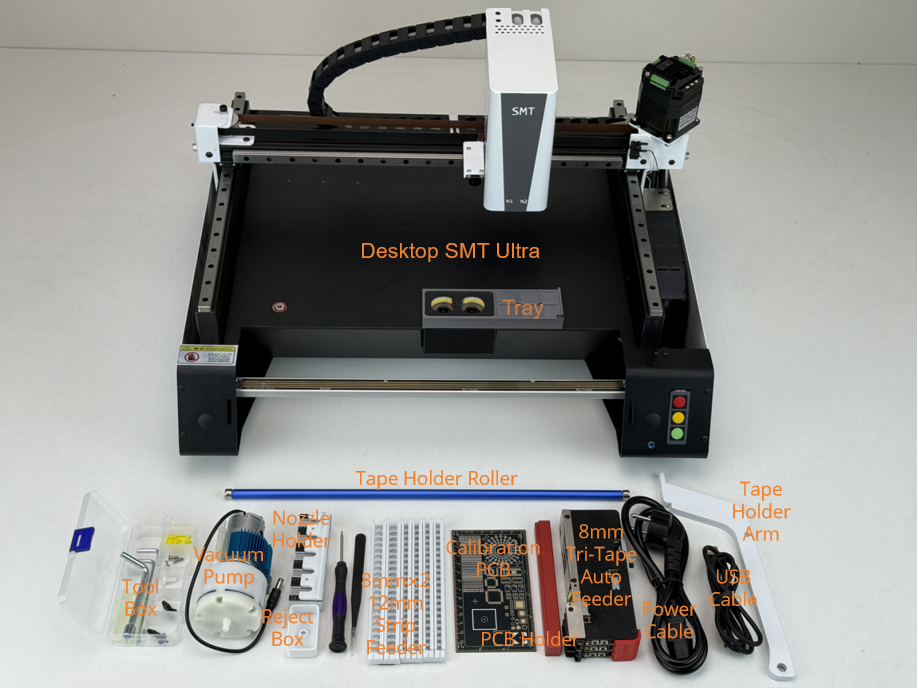

Default Delivery List

Sort	Name	Quantity	Mark
Equip	Desktop SMT Ultra	1	High-speed dual placement heads, Triple Vision, automatic head change
Nozzle	CN065	1	0603，0805
	CN140	1	1206，Sop8
Feeder	Strip Feeder	3	8mm、12mm、16mm one of each
	8mm Tri-tape Auto Feeder	1	Supports 0402 to Sop16, positioning accuracy 0.01mm
Others	Nozzle Change Holder	1	5 workstations, providing 4 nozzle replacements
	Calibrate PCB	1	Calibration Position
	Vacuum Pump	1	Provides vacuum power to the nozzle

Optional List

Sort	Name	Applicable Component		OD(mm)	ID(mm)	Price
Nozzle	CN040	0402		0.7	0.4	$8
	CN065	0603，0805		1.2	0.6	$8
	CN 140	1206，sop8		2.2	1.1	$8
	CN220	Sop8 sop16		3.6	2.2	$8
	CN400	Sop8 & above large components		6.2	4.0	$8
Feeder	8mm Strip Feeder		8mm Wide Tape, 3D Printed			$4
	12mm Strip Feeder		12mm Wide Tape , 3D Printed			$4
	16mm Strip Feeder		16mm Wide Tape , 3D Printed			$5
	Vision Feeder		Uniform luminescence, clear component outline recognition rate of 99%Can’t be used for square componentOnly one can be mounted on the magnetic base power supply			$15
	8mm Tri-tape Auto Feeder		Tape Wide 8mm, positioning accuracy 0.01mm			$49
	12mm Dual-tape Auto Feeder		Tape Wide 12mm, positioning accuracy 0.01mm			$40
	16mm Dual-tape Auto Feeder		Tape Wide 16mm, positioning accuracy 0.01mm			$40
Solder Paste Stencil Printing Station			Effective size 170×170mm			$52

Warranty

12-month warranty for quality problems caused by non-human factors
After the warranty period expires, parts will be replaced and repaired at cost price
