desktop lathe pro

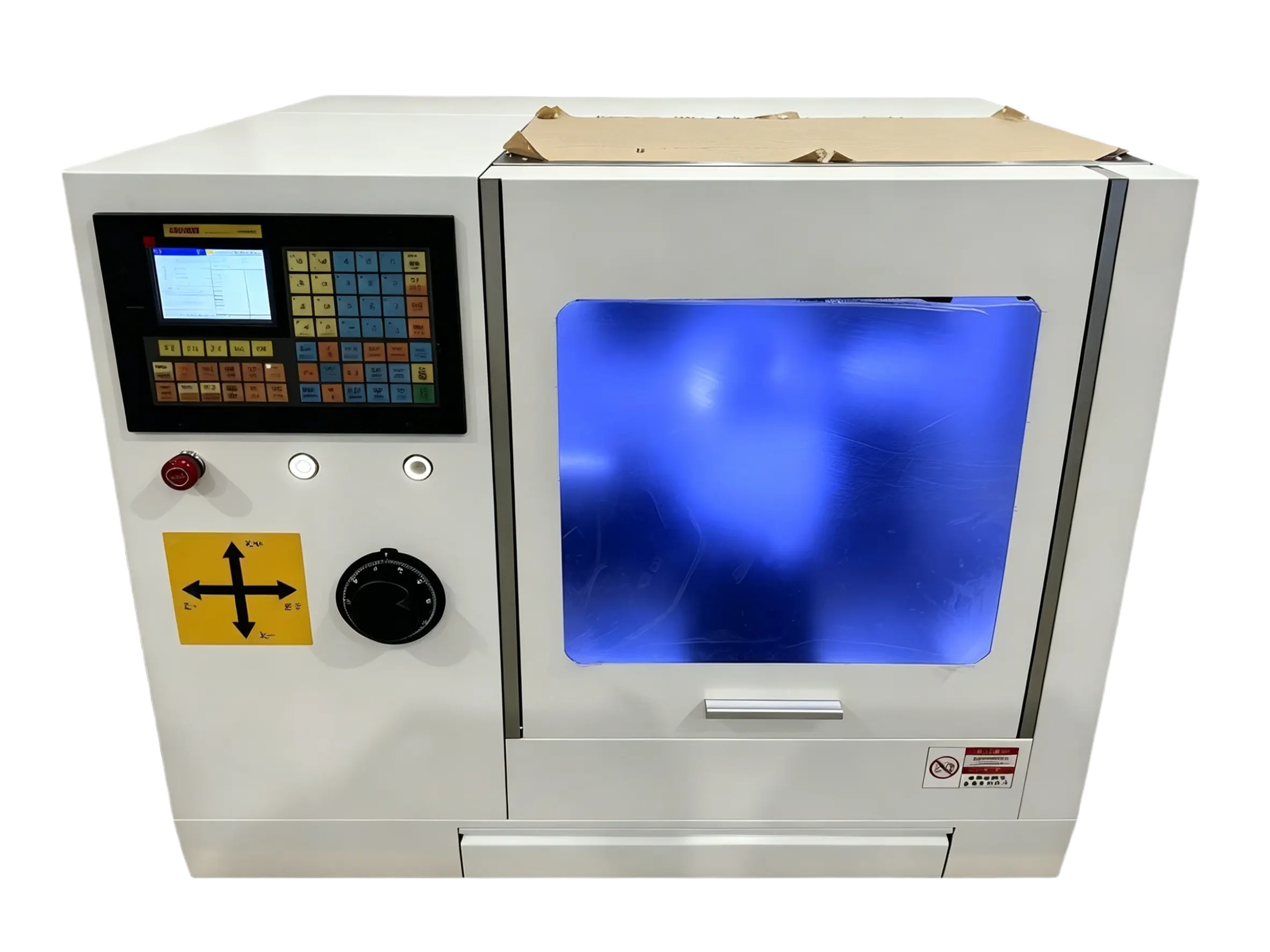

Desktop Lathe Pro is a desktop CNC lathe with compact dimensions and powerful turning capability. The spindle adopts 750w high power, the drive uses 100w servo motor, the machining accuracy is as high as 0.02mm. offline CNC system, panel operation, simple and efficient. Can process a variety of conventional materials, such as aluminum alloy, copper alloy, iron and other metals, plastic, wood, stone, wax and other non-metallic materials. Ideal for small businesses, individual fabricators, educational institutions and laboratories.

$3199

Features

High Performance Spindle

750w high power, 2800 rpm high speed.

High-Precision Accessories

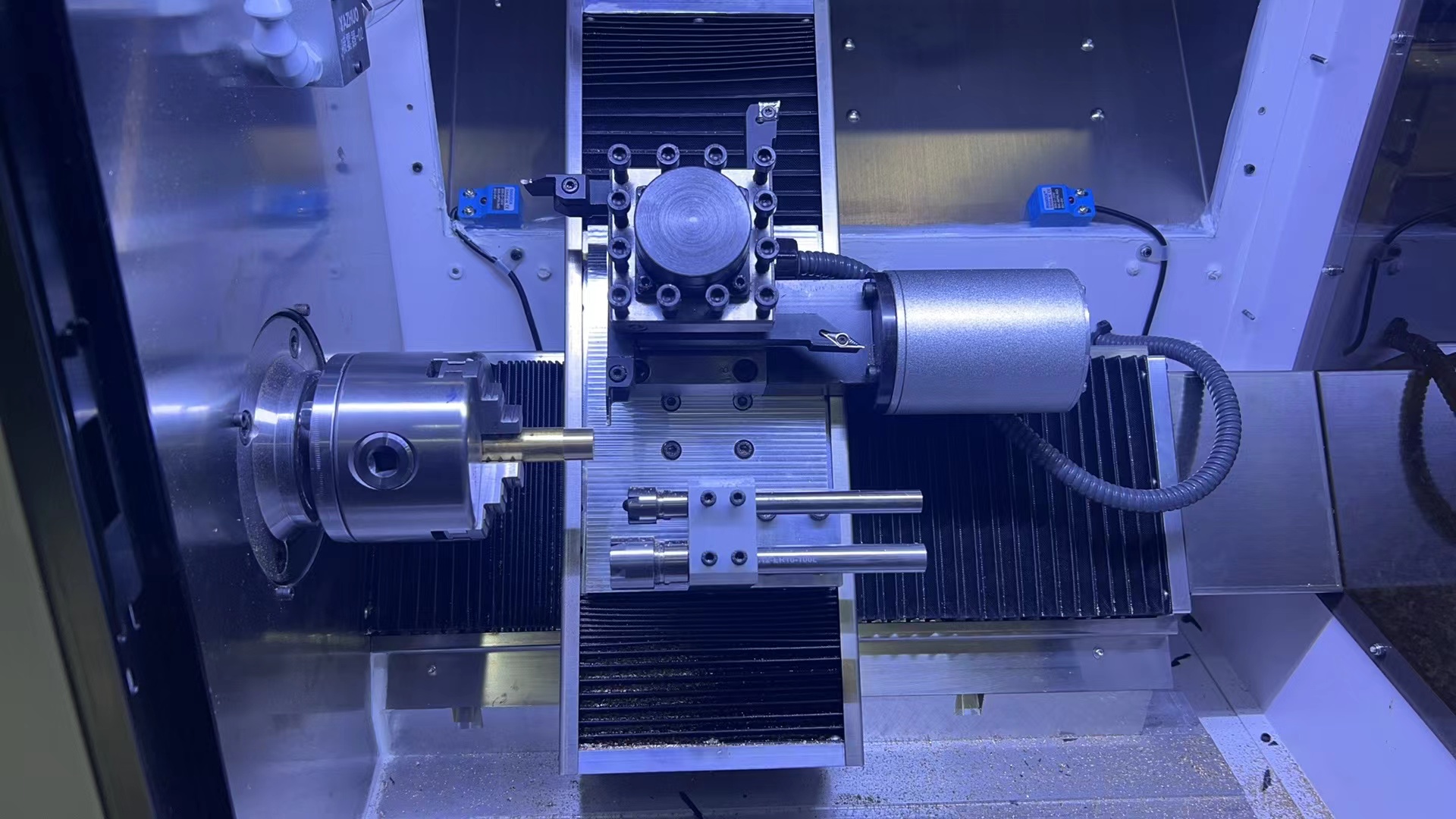

servo motor + ball screws + Hiwin linear guides

Sheet Metal Chassis

Dustproof and noise reduction, waterproof treatment of key components.

Simple Operation

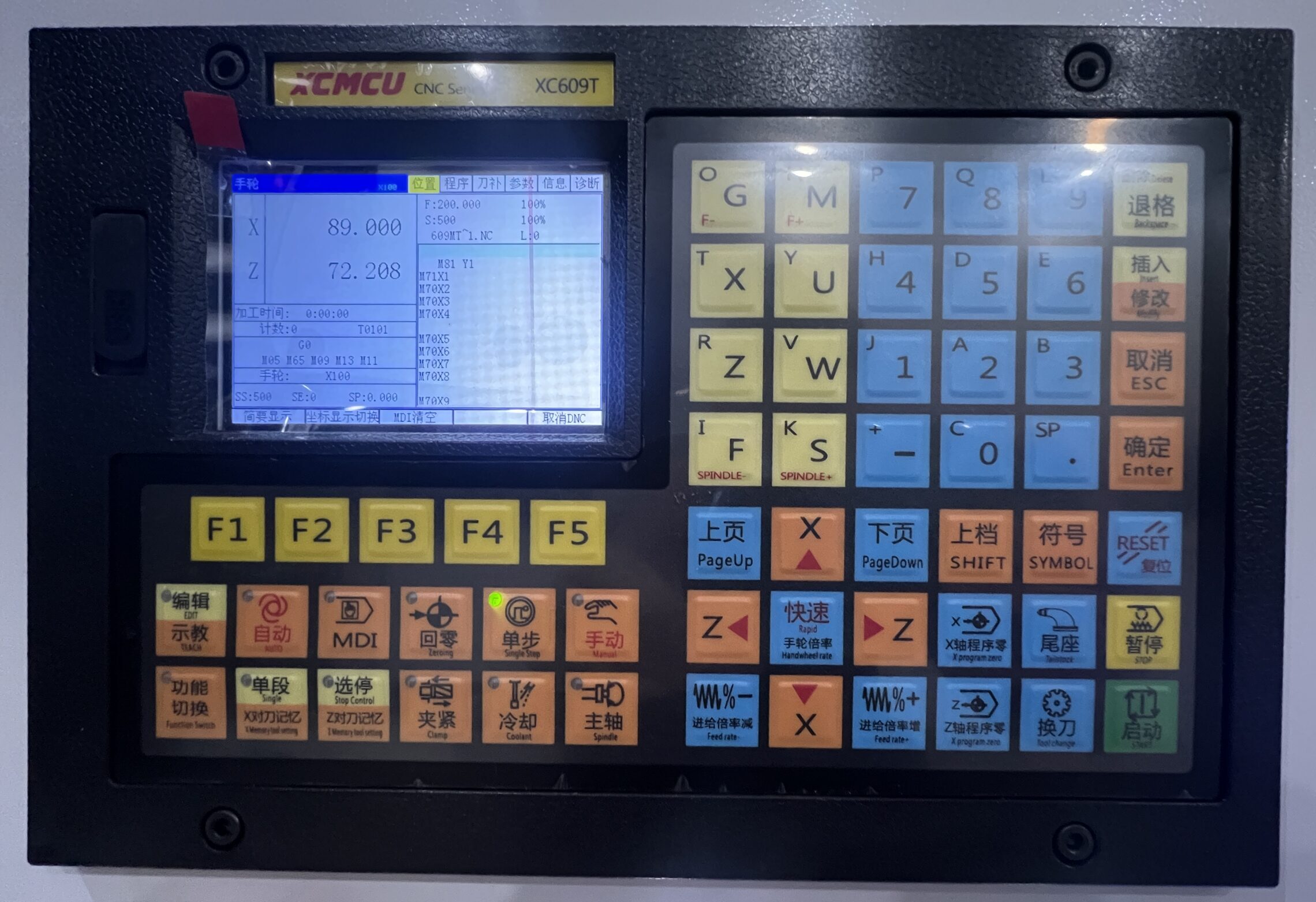

CNC operation panel, electronic handwheel.

Low-cost manufacturing

very suitable for aluminum alloy, iron material processing

Professional Technical Services

CAM programming simulation guidance, on-machine training, customized fixtures, customized accessories upgrade, etc.

Get Intro

Video

Compent

ABOUT US

Closed Loop
Stepper Motor


Drive motor employs a 57 closed-loop stepper motor for faster and smoother operation, incorporating an encoder for closed-loop feedback, effectively eliminating stepping issues.

Specs

Physical Dimensions Bed
Equipment SizeW790×D600×H660mmWorkbench Width130 mm
Packaging SizeW850×D650×H700mmWorkbench Length140 mm
Weight（Net/Gross）100/110kgX-axis Travel130 mm
Machining Accuracy0.02mmZ-axis Travel150mm
Repeat Positioning Accuracy0.01mmMax Workpiece Length200 mm
Machine RangeΦ80×150mmMax Cutting Length150 mm
SpeedFrame6061-T6
Spindle Max Speed2800 rpmEnclosureStainless steel & Galvanized sheet
Max Move Speed3000 mm/min Power
Max Feed Speed3000 mm/minSpindle Power750 w,Upgradeable to 1200 w
ToolXZ MotorServo Motor 100 w
Tool Diameter12×12mmVoltage100-240VAC,50/60Hz
Chuck Through HoleΦ15mmTotal Power1500 w,220V
Tool PositionQuick-change tool holder, 4 positionsControllerXC609T CNC Lathe System
ConnectionUSB

NC System

GM code programming
PLC programming
0.001mm interpolation accuracy
Reverse gap compensation, tool compensation
S-type, exponential acceleration and deceleration control to adapt to high-speed, high precision machining
Support handwheel
Support thread cutting, electric tool holder
Abundant external push-button input interface to facilitate the user’s debugging.

Shiping List

No.ManeDescriptionQuantity
1EquipmentDesktop Lathe Pro1 PCS
2Turning Tool 12×12mm93° external turning toolPointed tool95° external turning toolCut-off slotting tool4 PCS
3Power CordMain power Supply1 PCS
4MPG Operation axis movement1 PC S
5Wrenches ChuckWrenches, Tool Holder Wrenches1 PCS

Options

No.ManeDescriptionPriceQuantity
11200W SpindleTurning steel$791 PCS
2Pneumatic chuckMaximum clamping 15mm$5191 PCS
3Pneumatic door/$2201 PCS

Warranty

1. Warranty period is 1 year, after the warranty can provide cost replacement parts

2. In case of natural damage during the warranty period, free parts and remote guidance will be provided.

3. Incorrect operation, unauthorized disassembly of the product, man-made vandalism are not warranted.
